Engine — 2016 workshop reference 442

Engine — original illustration 1, reference 442Original colors & callouts · Select to enlarge

68. Remove the LH timing chain.

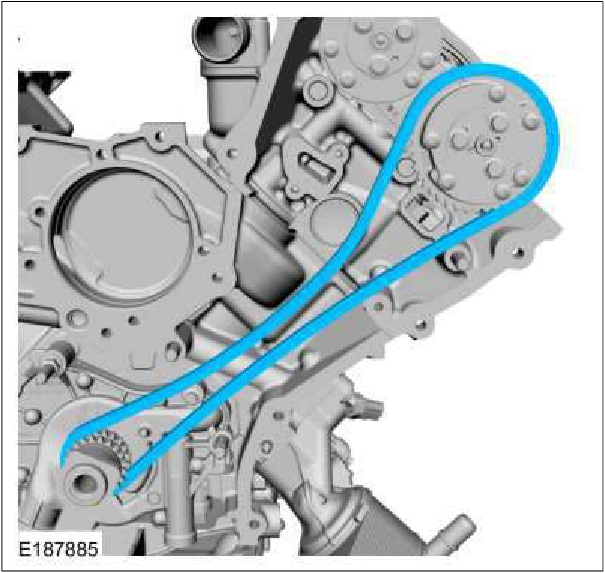

Engine — original illustration 2, reference 442Original colors & callouts · Select to enlarge

69. Remove the crankshaft sprocket.

Source reference 442
