Engine — 2016 workshop reference 443

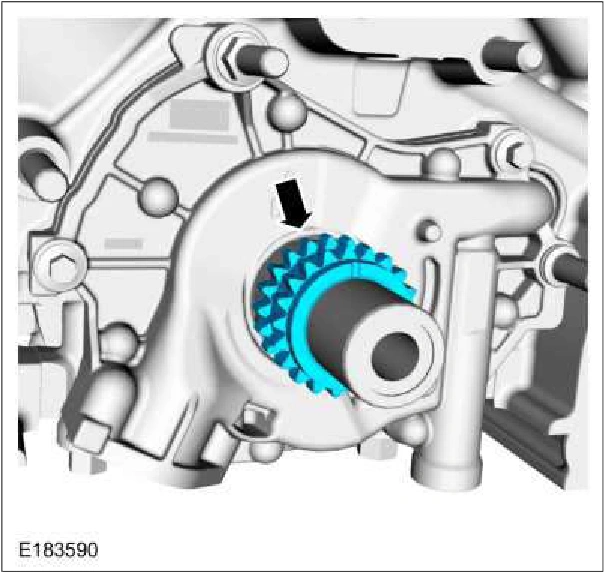

Engine — original illustration 1, reference 443Original colors & callouts · Select to enlarge

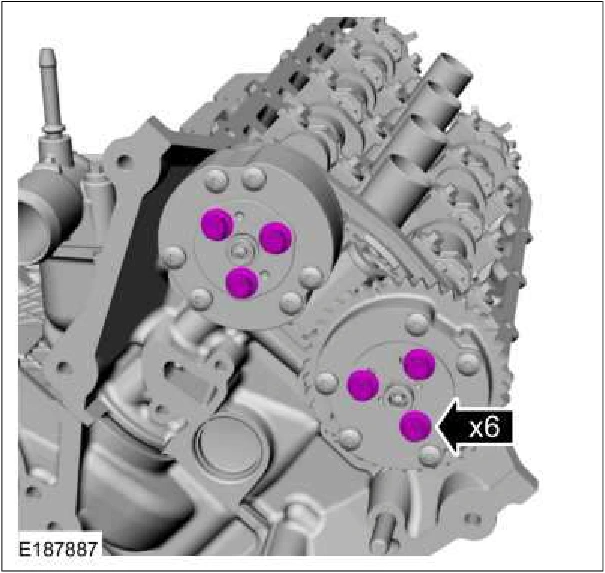

70. Remove the intake and exhaust VCT assembly bolts.

Engine — original illustration 2, reference 443Original colors & callouts · Select to enlarge

71. Slide the Variable Camshaft Timing VCT assemblies and secondary timing chain forward 2 mm (0.078 in).
