Step 57

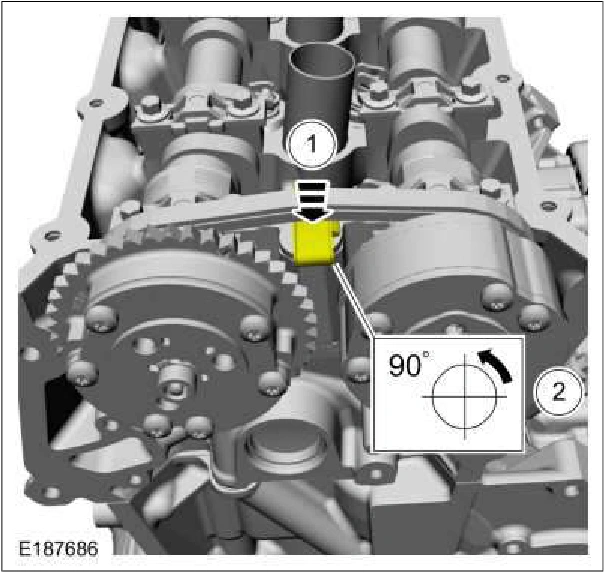

1. Depress the secondary timing chain tensioner.

2. Turn the tensioner counterclockwise 90 degrees.

Engine — original illustration 2, reference 437Original colors & callouts · Select to enlarge

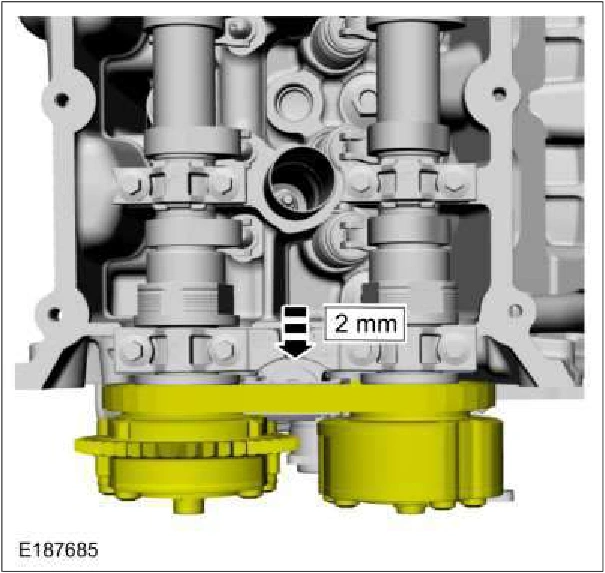

58. Remove the VCT assemblies and the secondary timing chain.

Source reference 437
