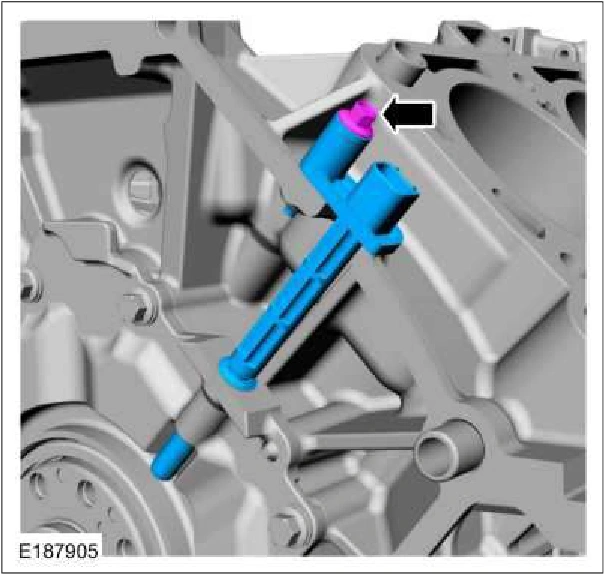

89. NOTICE: A new oil cooler must be installed or severe damage to the engine can occur.

Remove the threaded fitting and the oil cooler.

Discard the oil cooler.

Engine — original illustration 2, reference 452Original colors & callouts · Select to enlarge

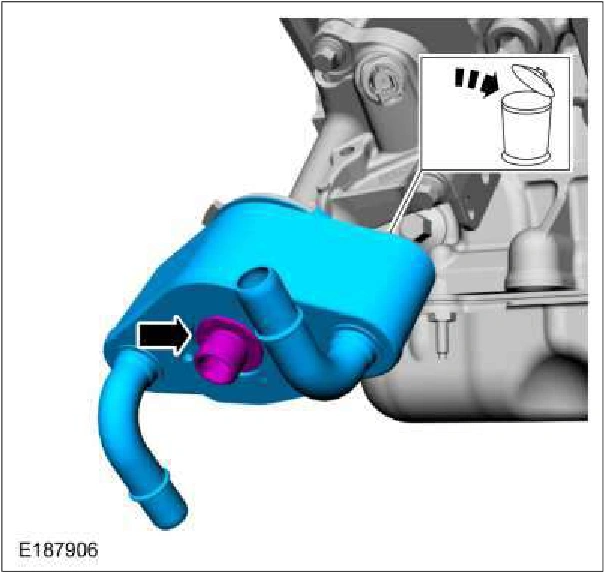

90. Remove the bolts and the oil filter adapter.

Discard the gasket.
