Engine — 2016 workshop reference 453

Engine — original illustration 1, reference 453Original colors & callouts · Select to enlarge

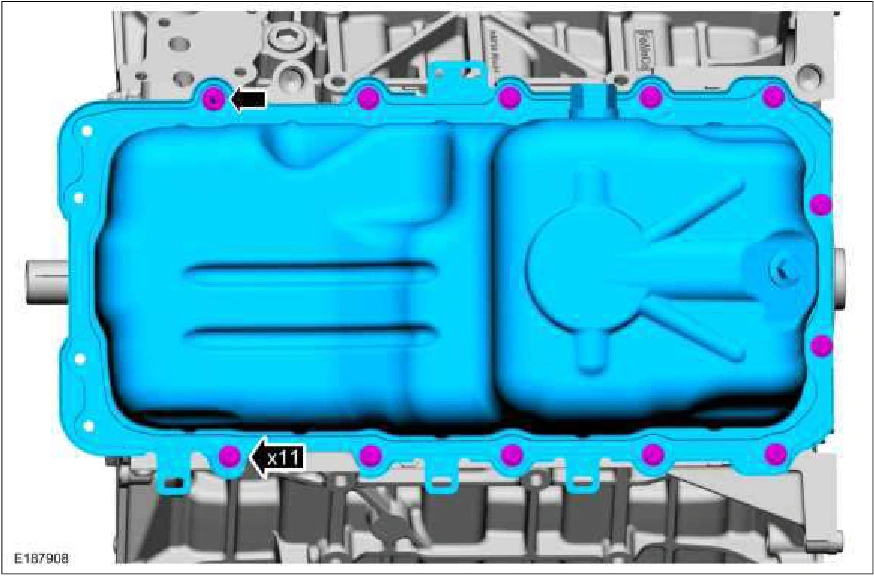

91. Remove the bolts and the oil pan.

Engine — original illustration 2, reference 453Original colors & callouts · Select to enlarge

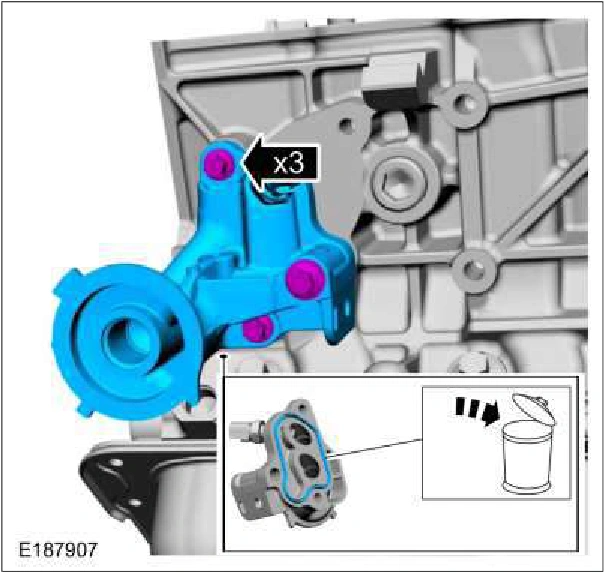

92. Remove the bolts and the oil pump screen and pickup tube.

Discard the O-ring seal.

Source reference 453
