6. NOTE: Automaitc transmission shown, manaul transmission similar.

Remove the selector lever bezel. Use the General Equipment: Interior Trim Remover

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4571Original colors & callouts · Select to enlarge

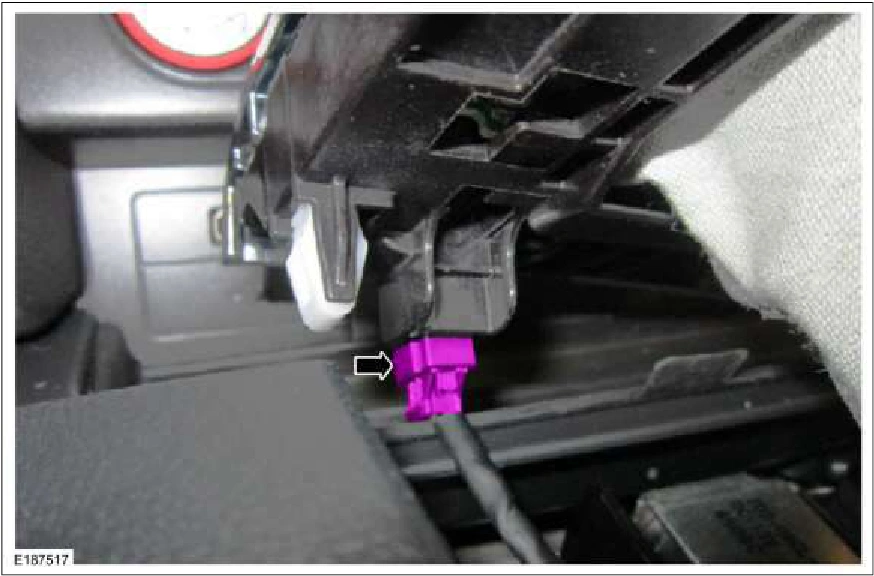

7. Position aside the selector lever boot. Disconnect the electrical connector.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4571Original colors & callouts · Select to enlarge

8. Open the floor console lid.
