Front Controls Interface Module (FCIM)

415-00B General Information -Vehicles With Touchscreen Display

2016 MustangReference 4,569 / 6,619HTML edition
← Chapter contents

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

07/29/2015

Front Controls Interface Module (FCIM)

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the FCIM following the on-screen instructions.

2. Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

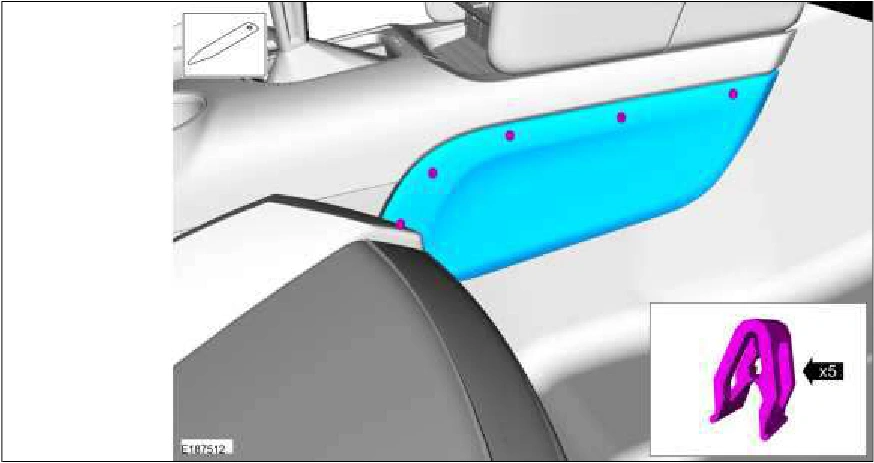

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4569Original colors & callouts · Select to enlarge

3. Release the clips and the floor console LH side trim panel. Use the General Equipment: Interior Trim Remover

Source reference 4569
