Installation

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4567Original colors & callouts · Select to enlarge

Coupe

1. Overlay the new AM/FM antenna cable on the vehicle wiring harness following the routing shown. Secure the new AM/FM antenna cable to the wiring harness with tape or zip ties as necessary.

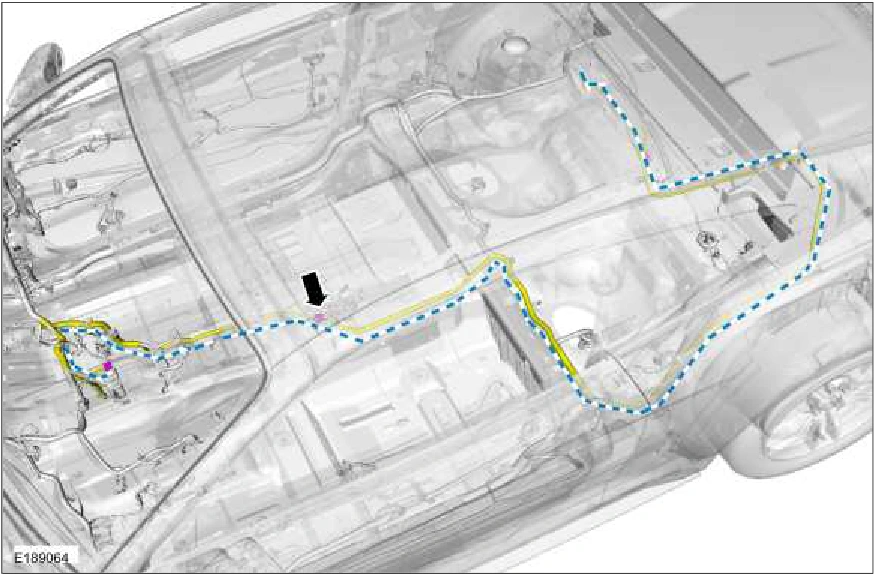

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4567Original colors & callouts · Select to enlarge

Convertible

2. Overlay the new AM/FM antenna cable on the vehicle wiring harness following the routing shown. Secure the new AM/FM antenna cable to the wiring harness with tape or zip ties as necessary.
