Audio Unit Antenna Amplifier

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

07/29/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Lower the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

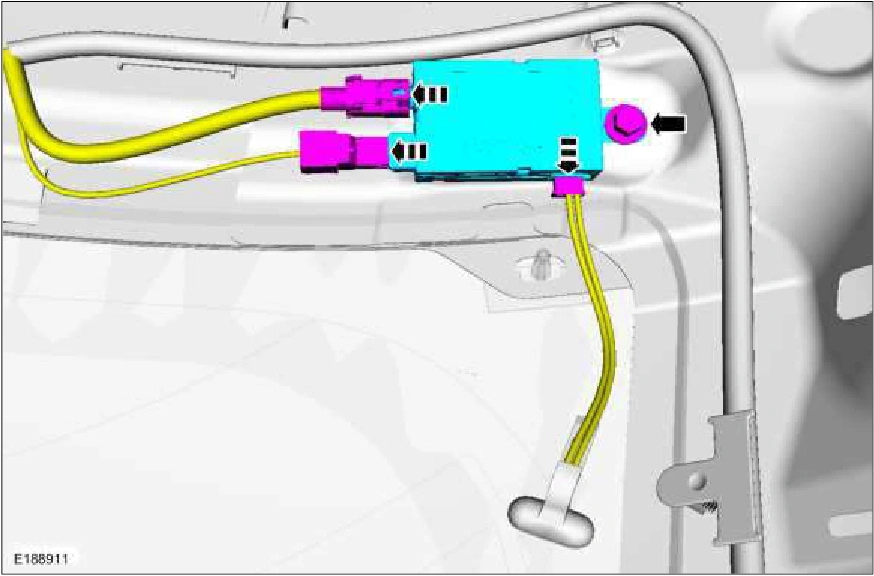

2. Remove the bolt and the audio unit antenna amplifier. Disconnect the electrical connectors. Torque : 106 lb.in (12 Nm)

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4564Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 4564
