415-00B General Information -Vehicles With Touchscreen Display — 2016 workshop reference 4561

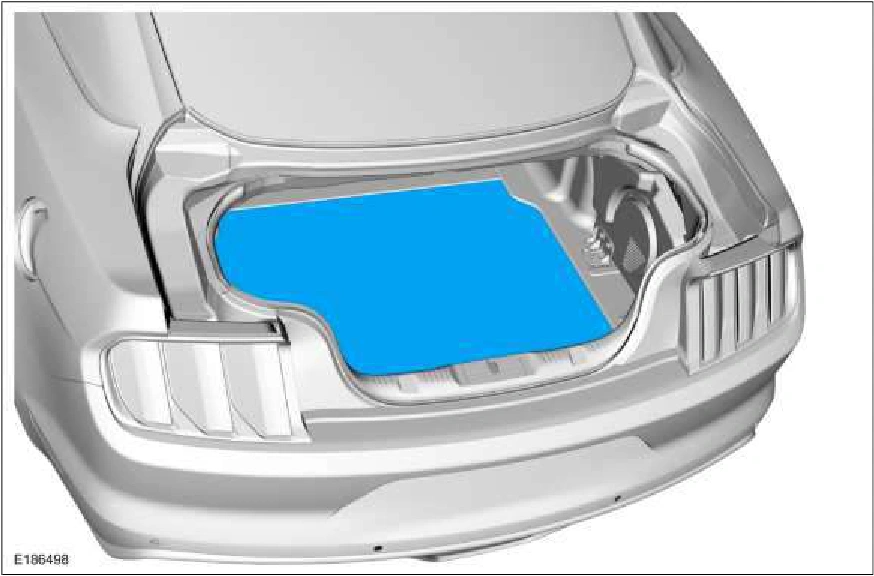

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4561Original colors & callouts · Select to enlarge

4. If equipped, remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

Step 5

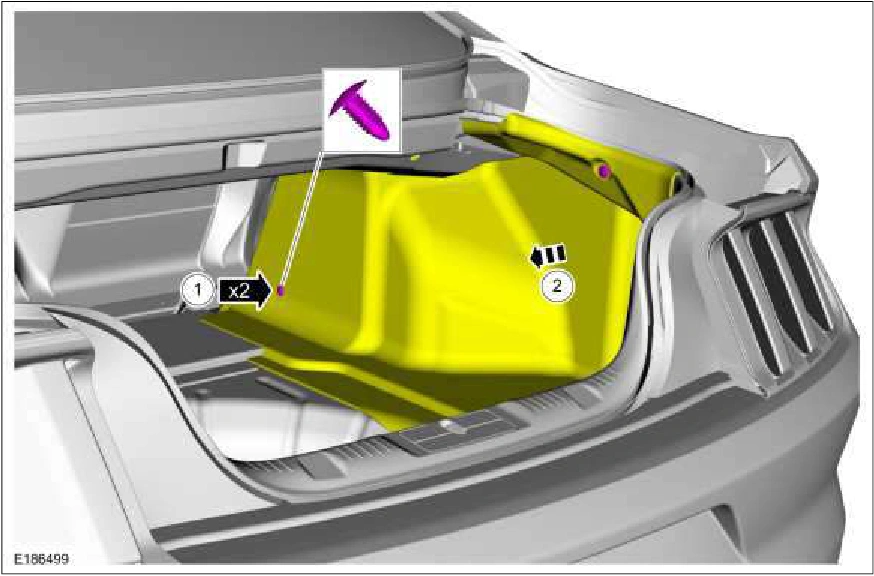

1. Remove the pin-type retainers.

2. Position aside the RH luggage compartment side trim panel.

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4561Original colors & callouts · Select to enlarge

6. Remove the audio unit antenna mast.
