Audio Front Control Module (ACM)

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

11/6/2015

Removal

NOTE: Eject any media from the ACM. If a disc fails to eject, do not forceably remove the disc from the ACM.

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the ACM following the on-screen instructions.

2. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

3. Remove the bolts and the FDIM. Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)

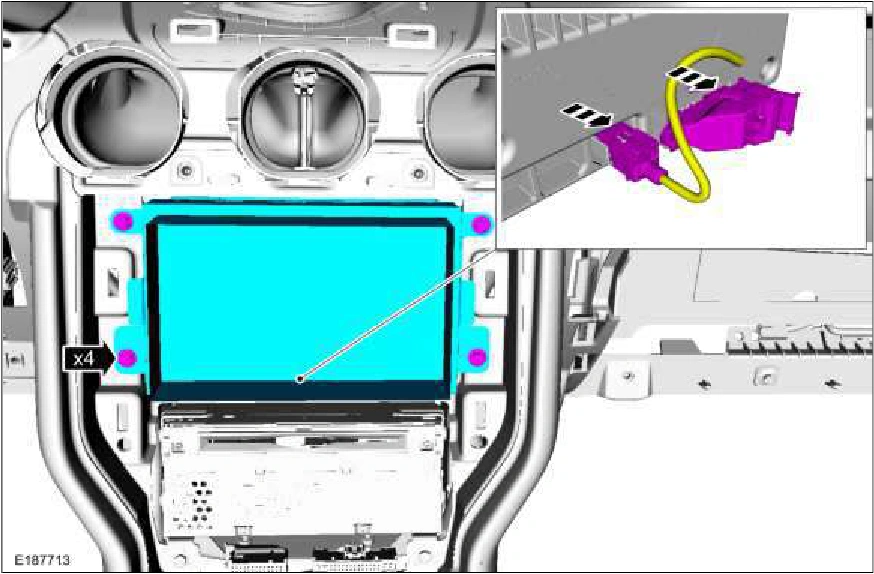

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4558Original colors & callouts · Select to enlarge

4. Remove the bolts and the ACM. Disconnect the electrical connectors. Torque : 22 lb.in (2.5 Nm)

Source reference 4558
