Audio Digital Signal Processing (DSP) Module

415-00B Information and Entertainment System - General Information - 2016 Mustang Vehicles With: Touchscreen Display

Procedure revision date:

Removal and Installation

07/29/2015

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the ACM following the on-screen instructions.

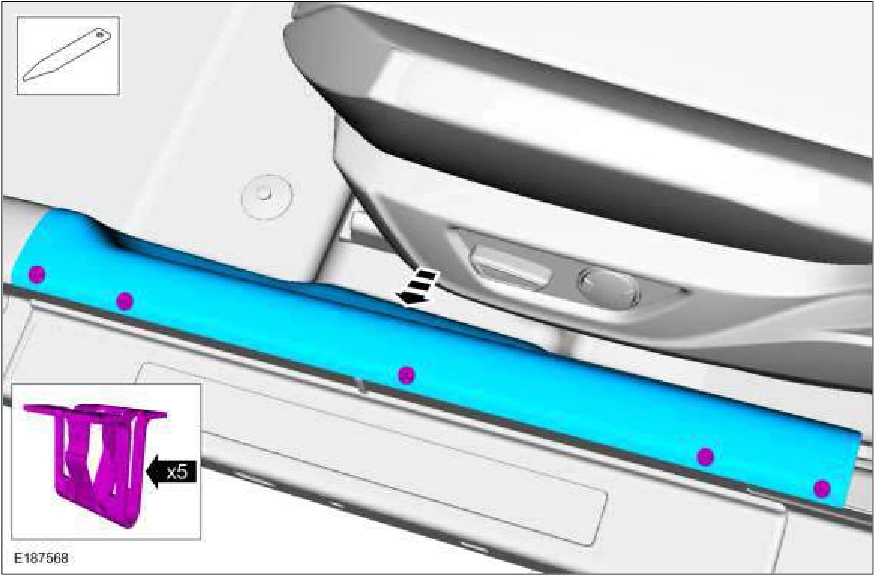

2. Release the clips and remove the LH scuff plate. Use the General Equipment: Interior Trim Remover

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4555Original colors & callouts · Select to enlarge

3. Remove the hood release handle bolt cover.

Source reference 4555
