Installation

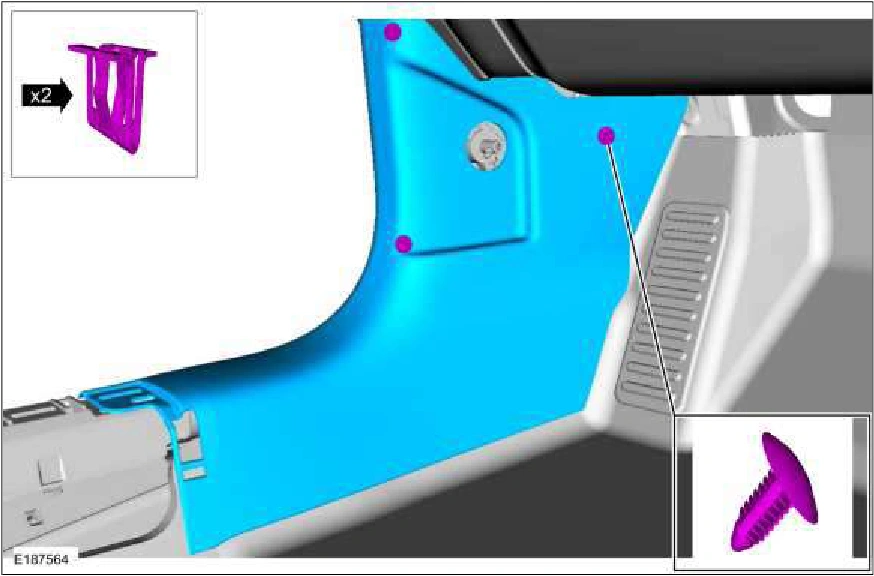

415-00B General Information -Vehicles With Touchscreen Display — original illustration 1, reference 4557Original colors & callouts · Select to enlarge

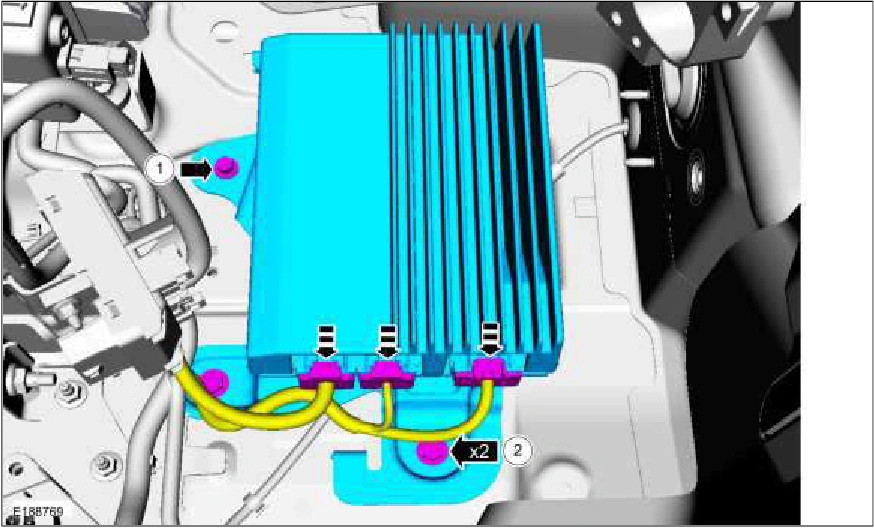

6. Remove the bolts, disconnect the electrical connectors and remove the DSP.

1. Torque : 106 lb.in (12 Nm)

2. Torque : 62 lb.in (7 Nm)

415-00B General Information -Vehicles With Touchscreen Display — original illustration 2, reference 4557Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

2. NOTE: This step is only required if the component is being replaced.

Using a diagnostic scan tool, complete the PMI process for the DSP following the on-screen instructions.

Source reference 4557
