Vehicle applicability: This diagnostic supplement covers multiple Ford vehicles and engines. Follow the application named in the source below. Some references apply to vehicles other than Mustang.
1-16 Description and Operation
Engine Control Components

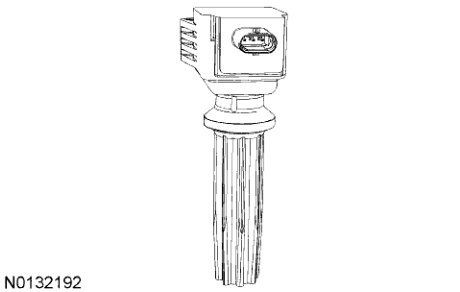

Typical Coil On Plug (COP)
Typical Coil On Plug (COP) With Integrated Driver
Coil Pack
The PCM provides a grounding switch for the coil primary circuit. When the switch is closed, voltage is applied to the coil primary circuit. This creates a magnetic field around the primary coil. The PCM opens the switch, causing the magnetic field to collapse, inducing the high voltage in the secondary coil windings and firing the spark plug. The spark plugs are paired so that as 1 spark plug fires on the compression stroke, the other spark plug fires on the exhaust stroke. The next time the coil is fired the order is reversed. The next pair of spark plugs fire according to the engine firing order.
Two adjacent coil towers share a common coil and are called a matched pair, the matched pairs are 1 and 4 and 2 and 3.
When the coil is fired by the PCM, spark is delivered through the matched pair towers to their respective spark plugs. The spark plugs are fired simultaneously and are paired so that as one fires on the compression stroke, the other spark plug fires on the exhaust stroke. The next time the coil is fired, the situation is reversed. The next pair of spark plugs fire according to the engine firing order.
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
