Engine Control Components
Crankcase Pressure Sensor
The crankcase pressure sensor measures the vacuum in the positive crankcase ventilation (PCV) system. A change in the PCV system vacuum greater than a calibrated threshold indicates the PCV system is disconnected and will set a DTC. The crankcase pressure sensor is located in the PCV system hose between the intake air system air cleaner and the engine crankcase PCV inlet.

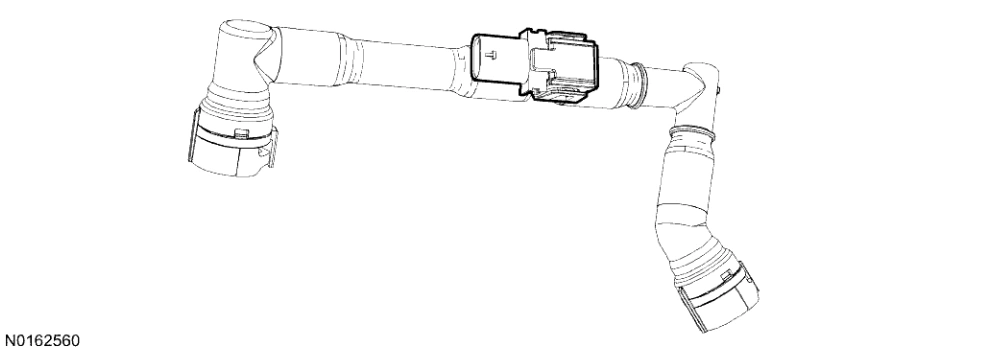

Typical Crankcase Pressure Sensor Integrated With Crankcase Ventilation Tube
Crankshaft Position (CKP) Sensor
The CKP sensor is a magnetic transducer mounted on the engine block adjacent to a pulse wheel located on the crankshaft. By monitoring the crankshaft mounted pulse wheel, the CKP sensor is the primary sensor for ignition information to the PCM. The pulse wheel for some V6 and
V8 engines have a total of 35 teeth spaced 10 degrees apart with 1 empty space for a missing tooth. The pulse wheel for some 4 cylinder engines and some V6 engines have a total of 58 teeth spaced 6 degrees apart with 2 empty spaces. The 6.8L 10 cylinder pulse wheel has 39 teeth spaced 9 degrees apart and one 9 degree empty space for a missing tooth. By monitoring the pulse wheel, the CKP sensor signal indicates crankshaft position and speed information to the PCM. By monitoring the missing tooth, the CKP sensor is able to identify piston travel in order to synchronize the ignition system and provide a way of tracking the angular position of the crankshaft relative to a fixed reference for the CKP sensor configuration. The PCM also uses the CKP sensor signal to determine if a misfire has occurred by measuring rapid decelerations between teeth.
There are 2 types of CKP sensors used. The 2 pin variable reluctance sensor and the 3 pin Hall effect sensor.
Typical CKP Sensor
Cylinder Head Temperature (CHT) Sensor
NOTE: If the CHT sensor is removed from the cylinder head for any reason it must be replaced with a new sensor.
The CHT sensor is a thermistor device in which resistance changes with the temperature. The resistance of a thermistor decreases as temperature increases, and the resistance increases as the temperature decreases. The varying resistance affects the voltage drop across the sensor pins and provides electrical signals to the PCM corresponding to temperature.
Thermistor type sensors are considered passive sensors. A passive sensor is connected to a voltage divider network so varying the resistance of the passive sensor causes a variation in total current flow. Voltage that is dropped across a fixed resistor (pull-up resistor) in series with the sensor resistor determines the voltage signal at the PCM. This voltage signal is equal to the reference voltage minus the voltage drop across the fixed resistor.
