Powertrain Control Hardware
Item | Part Number | Description |
|---|---|---|
1 | — | B Connector |
2 | — | E Connector |

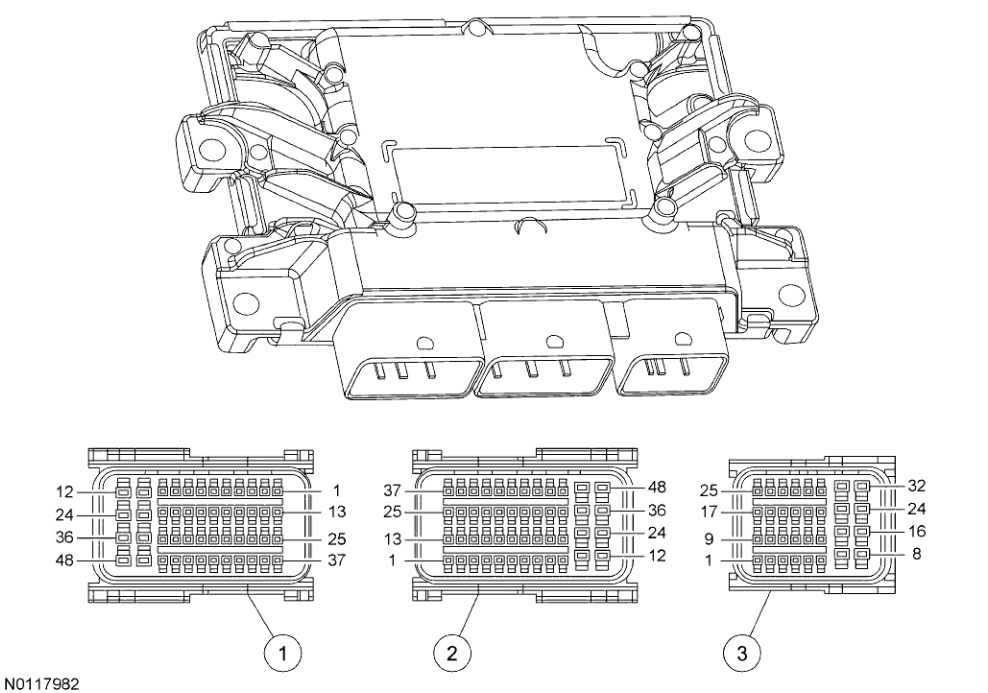

128 Pin PCM
Item | Part Number | Description |
|---|---|---|
1 | — | E Connector |
2 | — | B Connector |
3 | — | T Connector |
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
