1-62 Description and Operation
Catalyst And Exhaust Systems

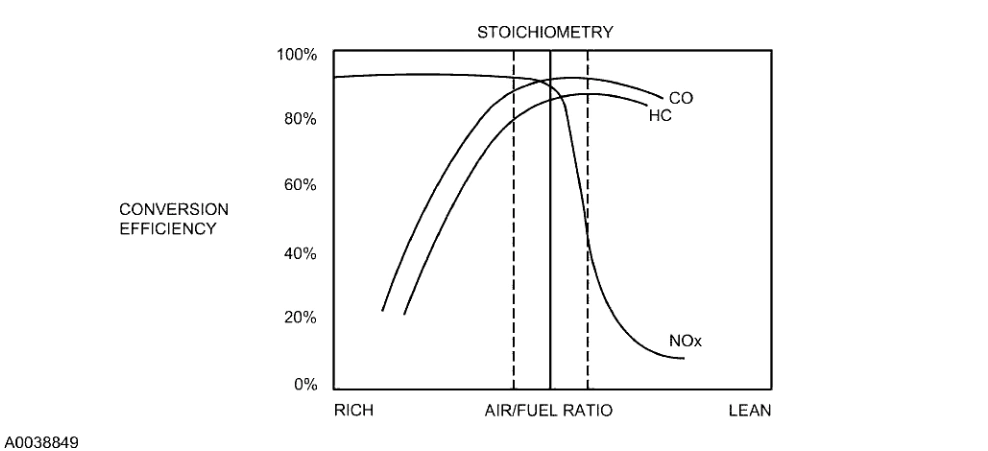

TWC Converter Conversion Efficiency Chart
Exhaust System
The exhaust system conveys engine emissions from the exhaust manifold to the atmosphere. Engine exhaust emissions are directed from the engine exhaust manifold to the catalytic converter through the front exhaust pipe. A universal HO2S is mounted on the front exhaust pipe before the catalyst. The catalytic converter reduces the concentration of CO, unburned HCs, and NO in the exhaust emissions to an
x
acceptable level. The reduced exhaust emissions are directed from the catalytic converter past another HO2S mounted in the rear exhaust pipe and then on into the muffler. Finally, the exhaust emissions are directed to the atmosphere through an exhaust tailpipe.

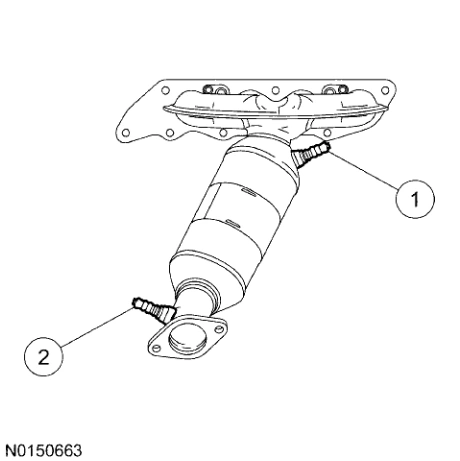

Typical Bank 1 Catalyst HO2S Configuration
Item | Part Number | Description |
|---|---|---|
1 | — | Universal HO2S11 |
2 | — | HO2S12 |
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
