Description and Operation 1-65
Cold Start System

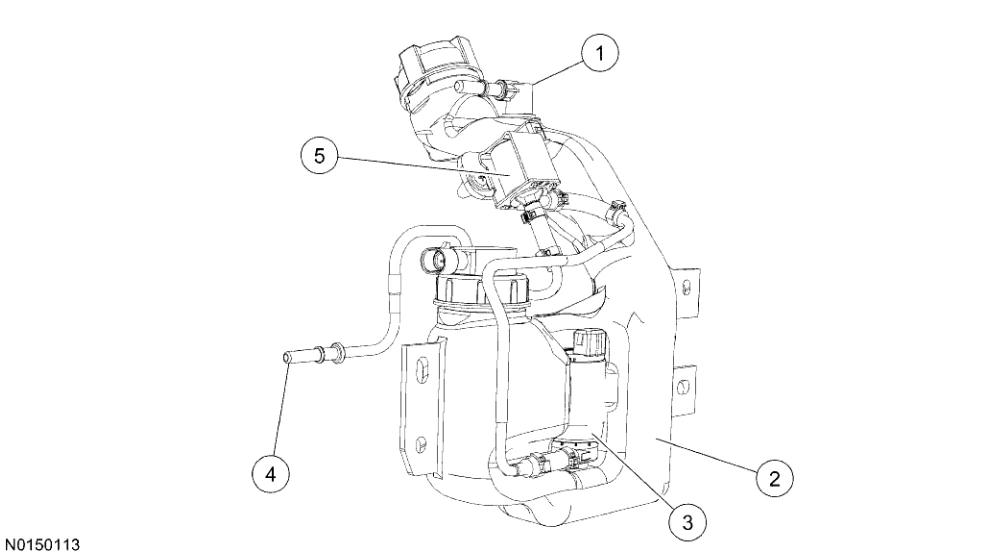

Typical Cold Start Fuel Reservoir And Fuel Injector
Item | Part Number | Description |
|---|---|---|
1 | — | Vapor Fitting |
2 | — | Cold Start Fuel Reservoir |
3 | — | Cold Start Fuel Pump |
4 | — | Cold Start Fuel Line |
5 | — | Cold Start Valve |
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
