Engine — 2016 workshop reference 484

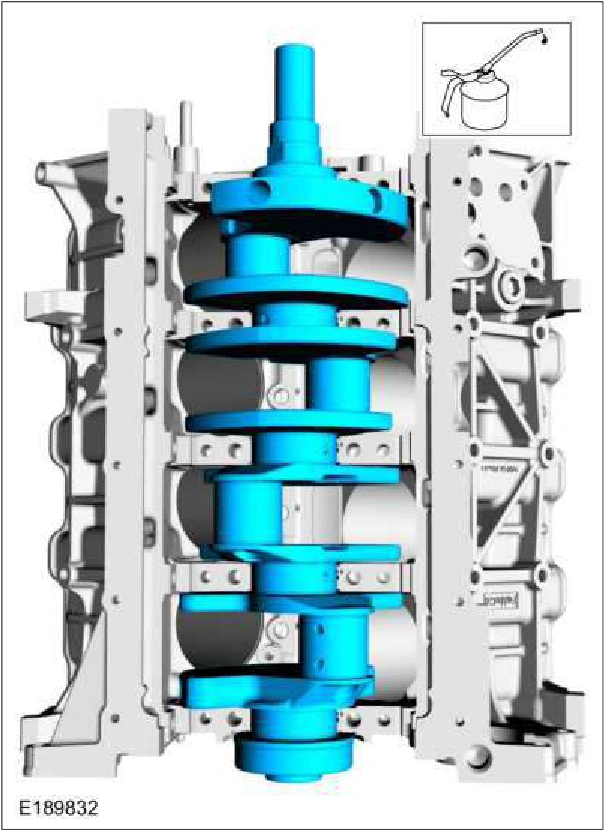

7. NOTE: Lubricate the crankshaft bearing journals with clean engine oil.

Install the crankshaft into the cylinder block. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 1, reference 484Original colors & callouts · Select to enlarge

8. NOTE: The oil groove on the thrust washer must face toward the rear of the engine (against the crankshaft thrust surface).

NOTE: Lubricate the thrust washer with clean engine oil.

Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 5 main boss. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
