Engine — 2016 workshop reference 483

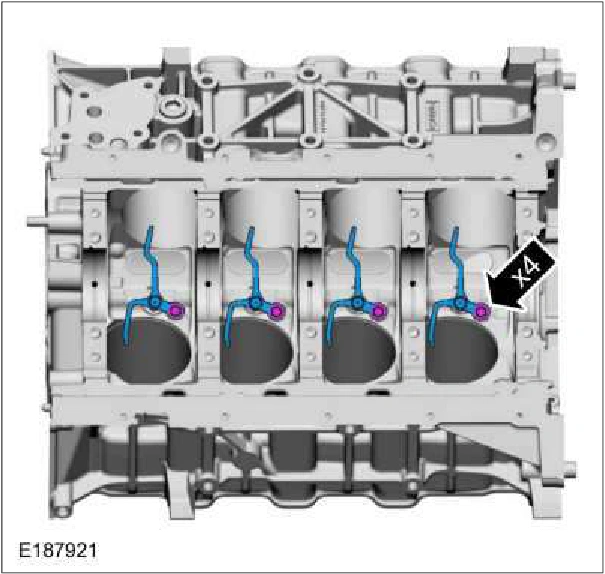

5. Install the piston cooling jets and bolts. Torque : Stage 1: 89 lb.in (10 Nm) Stage 2: 45°

Engine — original illustration 1, reference 483Original colors & callouts · Select to enlarge

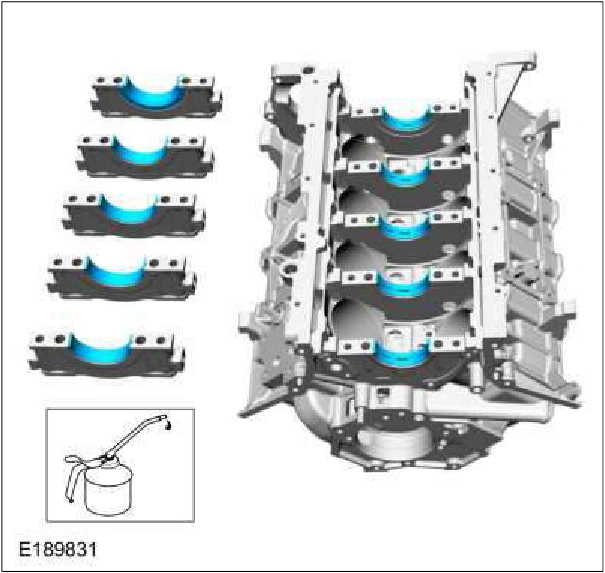

6. Install the crankshaft main bearings. Install the crankshaft upper main bearings into the cylinder block. Install the crankshaft lower main bearings and thrust bearing into the bearing caps. Make sure all oil passages are aligned. Lubricate all main bearings with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 2, reference 483Original colors & callouts · Select to enlarge
