Materials
Name | Specification |
|---|---|
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.) | WSS-M2C945-A |
Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |
Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) VC-3-B (U.S.) | WSS-M97B44-D |
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A | ESE-M1C171-A |
6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82
NOTICE: The timing chain alignment procedure has changed from prior model year engines and must be followed exactly or damage to the engine will result.
NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: During engine assembly it may become necessary to check bearing clearances and end play. Refer to Section 303-00.

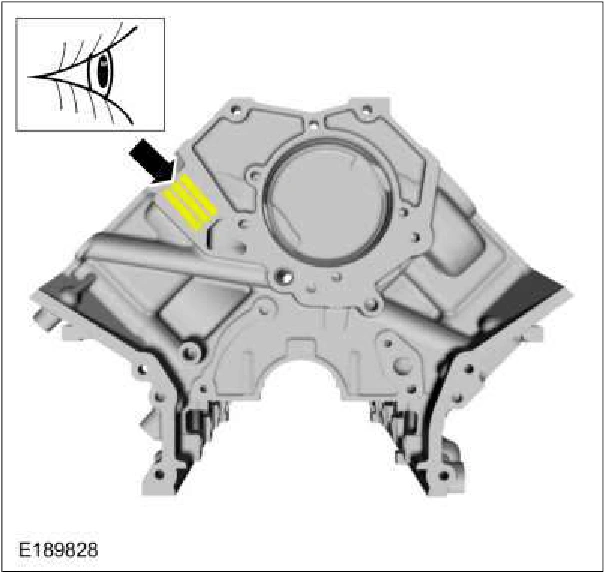

1. Record the main bearing code found on the front of the engine block.
2. Record the main bearing code found on the rear of the crankshaft.
