Piston — 2016 workshop reference 478

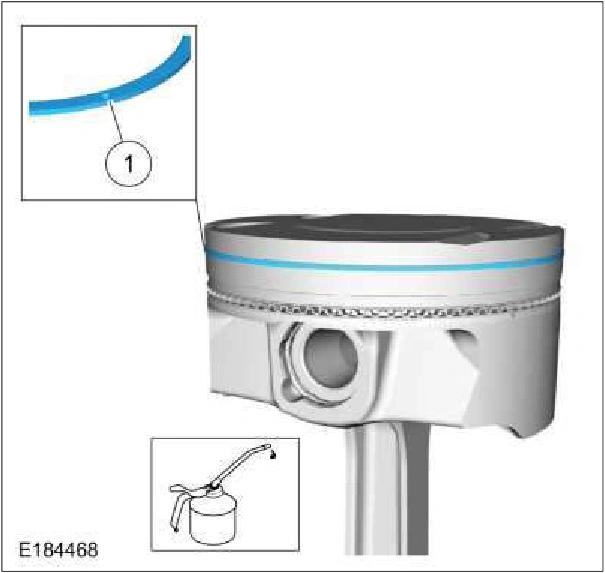

Piston — original illustration 1, reference 478Original colors & callouts · Select to enlarge

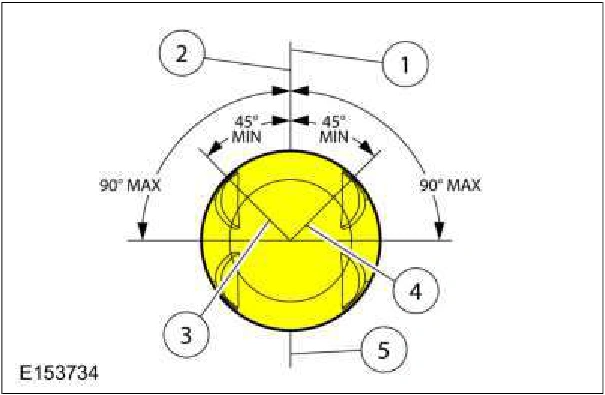

8. Position the piston ring gaps.

1. Center line of the piston parallel to the wrist pin bore.

2. Upper compression ring gap.

3. Upper oil control ring gap.

4. Lower oil control ring gap.

5. Oil control expander ring and lower compression ring gap.

Piston — original illustration 2, reference 478Original colors & callouts · Select to enlarge
