Piston — 2016 workshop reference 475

Piston — original illustration 1, reference 475Original colors & callouts · Select to enlarge

2. Position the piston on the connecting rod.

Piston — original illustration 2, reference 475Original colors & callouts · Select to enlarge

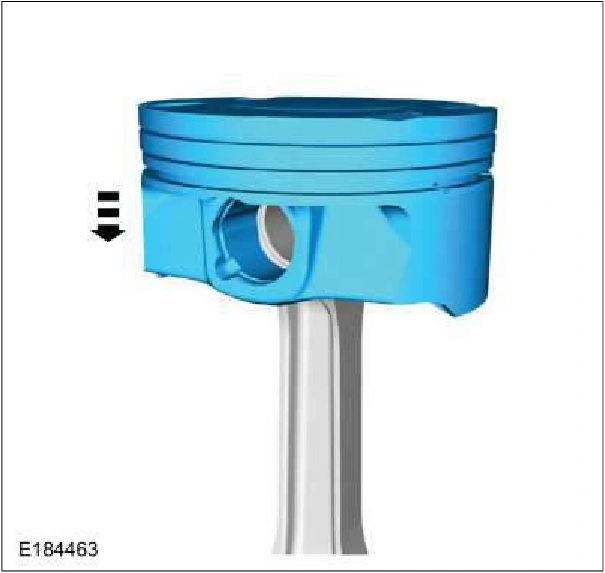

3. Lubricate and install the piston pin.
