303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS) 2016 Mustang

Disassembly and Assembly of Subassemblies Procedure revision date: 04/20/2015

Piston

Materials

Name

Specification

Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.)

WSS-M2C945-A

DISASSEMBLY

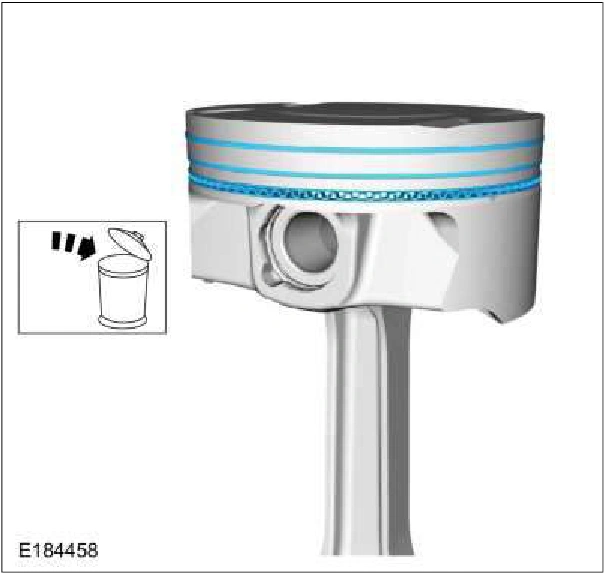

1. Remove and discard the piston rings.

Piston — original illustration 1, reference 472Original colors & callouts · Select to enlarge

2. Remove and discard the piston pin retainers. Remove the piston pin.
