Cylinder Head — 2016 workshop reference 469

Cylinder Head — original illustration 1, reference 469Original colors & callouts · Select to enlarge

RH cylinder heads

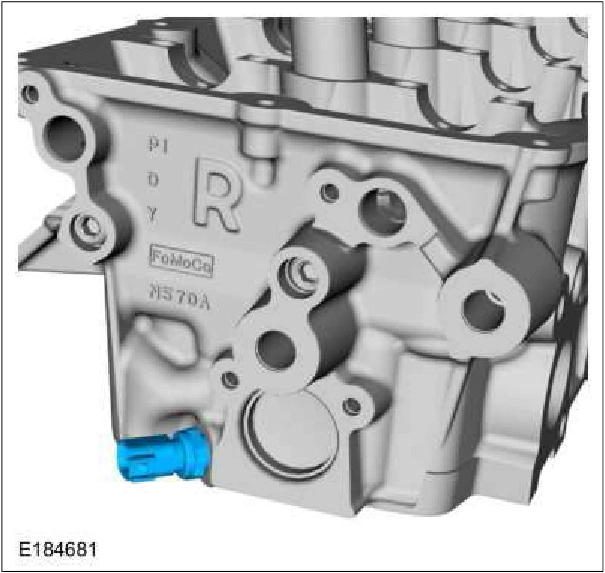

6. Install a new CHT sensor. Torque : 97 lb.in (11 Nm)

Cylinder Head — original illustration 2, reference 469Original colors & callouts · Select to enlarge

7. Install the CMP sensor and bolt. Torque : 89 lb.in (10 Nm)
