Cylinder Head — 2016 workshop reference 470

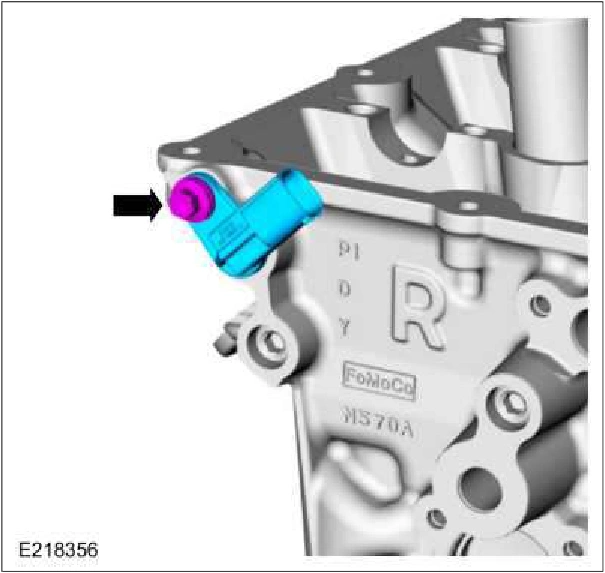

Cylinder Head — original illustration 1, reference 470Original colors & callouts · Select to enlarge

8. NOTE: Lubricate the O-ring seal with clean engine coolant prior to installing.

Using a new O-ring seal, install the coolant outlet pipe. Material : Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D) Torque : 89 lb.in (10 Nm)

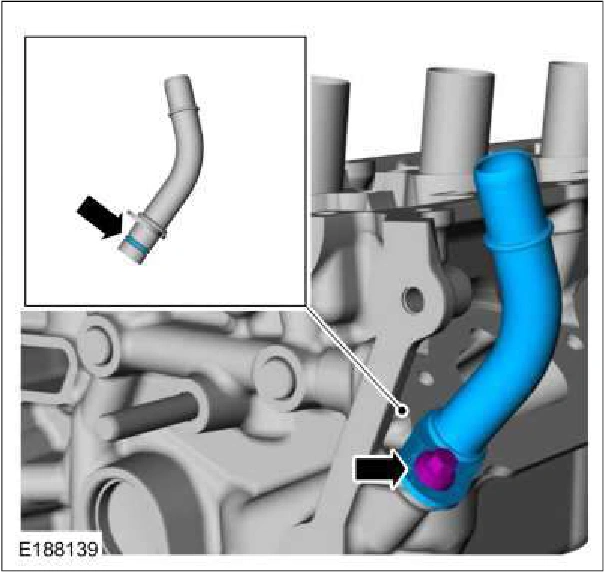

Cylinder Head — original illustration 2, reference 470Original colors & callouts · Select to enlarge

LH cylinder heads

9. Using a new gasket, install the coolant outlet and the bolts. Torque : 89 lb.in (10 Nm)
