Cylinder Head

303-01C Engine - 5.0L

2016 Mustang5.0LReference 467 / 6,619HTML edition
← Chapter contentsProcedure contents
Cylinder Head — original illustration 1, reference 467Original colors & callouts · Select to enlarge

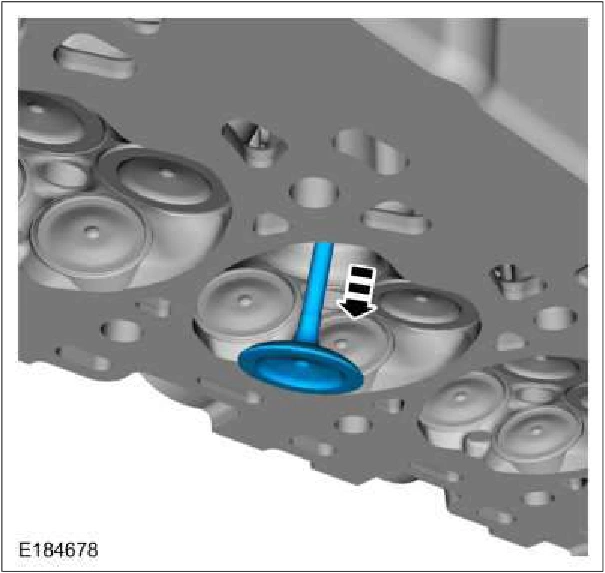

10. Repeat the previous steps for each of the remaining valves.

ASSEMBLY

All cylinder heads

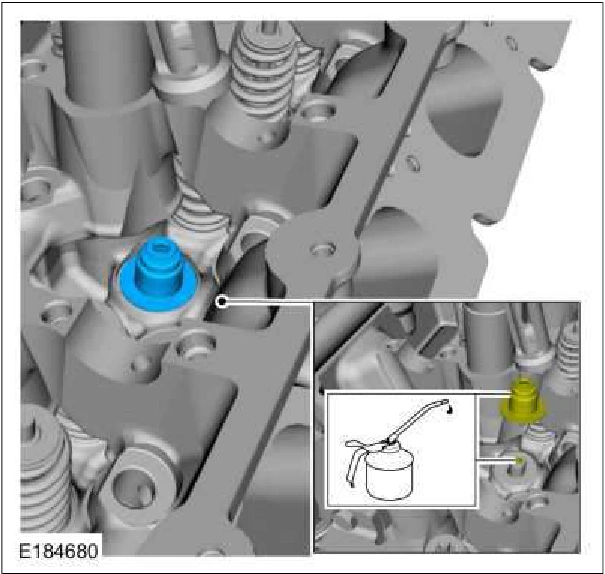

1. NOTE: Lubricate the new valve stem seal and valve guide bore with clean engine oil.

Install the new valve stem seal. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Cylinder Head — original illustration 2, reference 467Original colors & callouts · Select to enlarge

2. Install the valve into the cylinder head.
