Cylinder Head — 2016 workshop reference 464

Cylinder Head — original illustration 1, reference 464Original colors & callouts · Select to enlarge

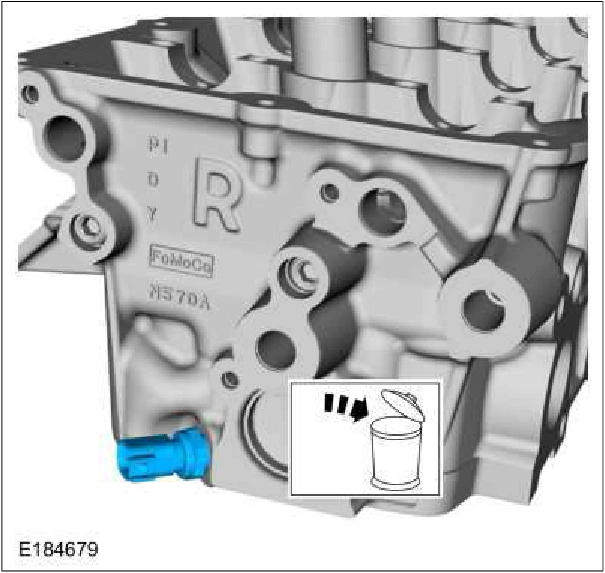

4. Remove and discard the CHT sensor.

Cylinder Head — original illustration 2, reference 464Original colors & callouts · Select to enlarge

5. Remove the bolt and the coolant outlet. Discard the O-ring seal.

Source reference 464
