Cylinder Head — 2016 workshop reference 463

Cylinder Head — original illustration 1, reference 463Original colors & callouts · Select to enlarge

2. Remove the bolts, the CMP sensors and the radio interference capacitor.

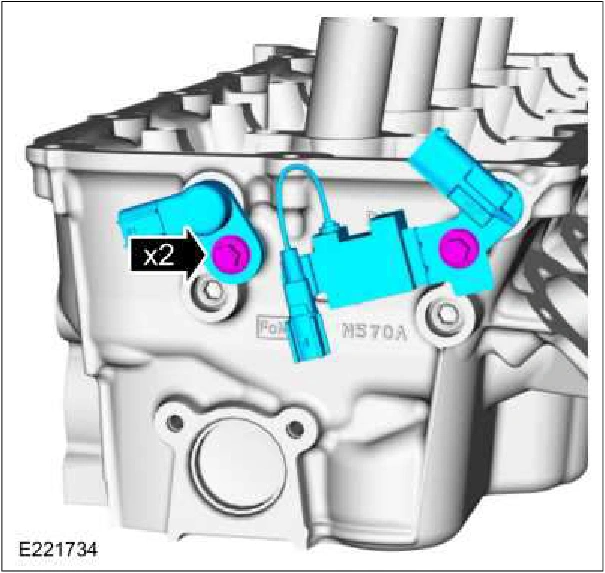

Cylinder Head — original illustration 2, reference 463Original colors & callouts · Select to enlarge

RH cylinder heads

3. Remove the bolt and the CMP sensor.

Source reference 463

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
