Engine — 2016 workshop reference 460

Engine — original illustration 1, reference 460Original colors & callouts · Select to enlarge

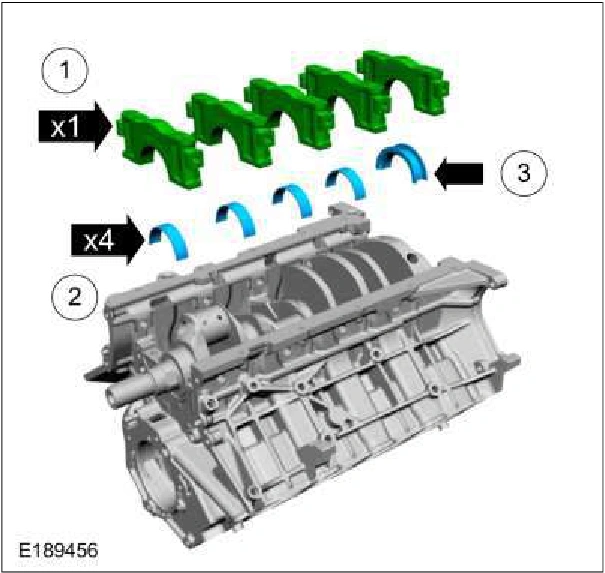

106. Remove the main bearing caps (1), the lower crankshaft main bearings (2) and the lower thrust bearing (3).

Engine — original illustration 2, reference 460Original colors & callouts · Select to enlarge

107. Remove the crankshaft (1), the upper crankshaft main bearings (2) and the upper thrust washer (3) from the cylinder block.

Source reference 460

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
