Engine — 2016 workshop reference 458

Engine — original illustration 1, reference 458Original colors & callouts · Select to enlarge

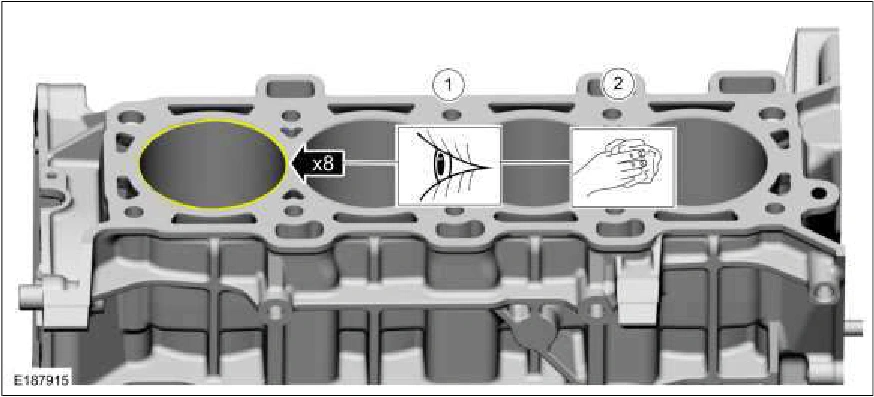

100. Before removing the pistons, inspect the top of the cylinder bores.

If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

Engine — original illustration 2, reference 458Original colors & callouts · Select to enlarge

101. NOTICE: Verify that the connecting rod and rod cap have orientation numbers cast into them. If

not, number the connecting rod and rod cap for correct orientation. Failure to do so can result in engine damage.

Remove the bolts and the connecting rod cap.
