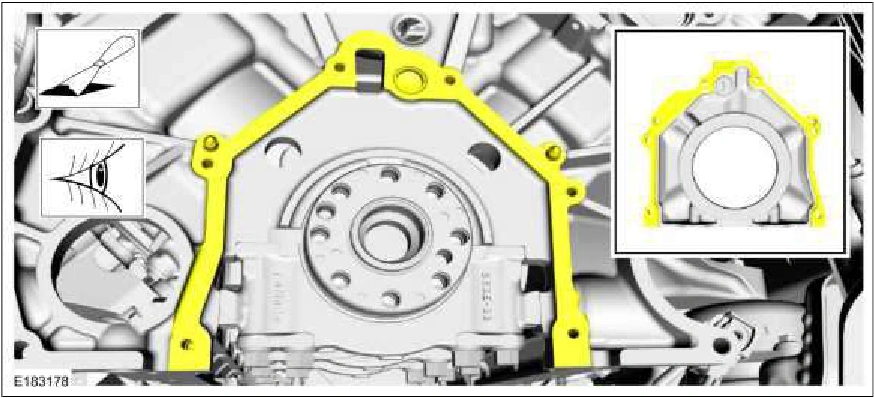

98. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means
to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures). Use the General Equipment: Plastic Scraper Material : Motorcraft® Silicone Gasket Remover / ZC-30-A Material : Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.) Material : Motorcraft® Metal Surface Prep / ZC-31-B
99. Remove the bolts, the stud bolts and the oil pump.
