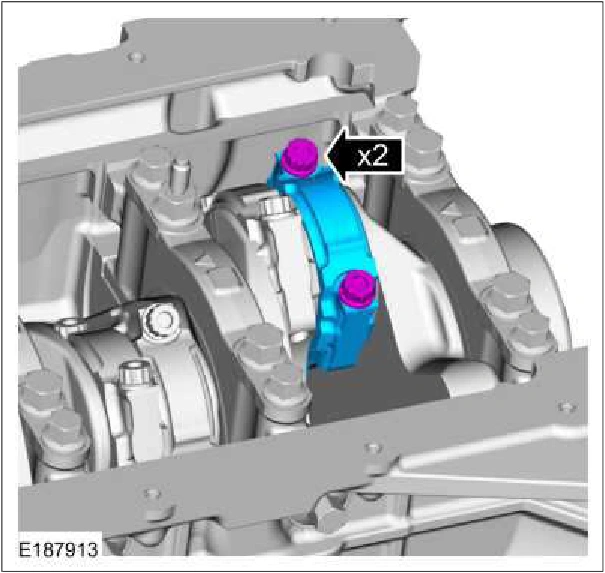

Engine — original illustration 1, reference 459Original colors & callouts · Select to enlarge

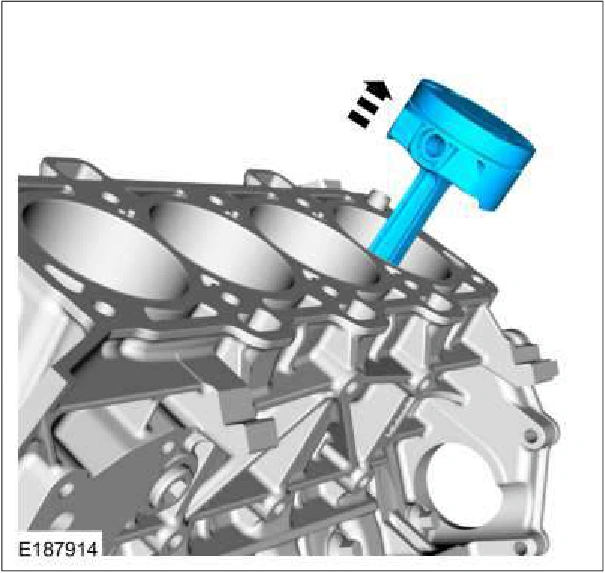

102. NOTICE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod or

engine damage may occur.

Remove the piston through the top of the cylinder block.

Engine — original illustration 2, reference 459Original colors & callouts · Select to enlarge

103. Repeat the previous 2 steps for each of the remaining pistons.

104. Disassemble the 8 pistons. Refer to: Piston (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Disassembly and Assembly of Subassemblies).

Step 105

1. Remove and discard the cross-mounted main cap bolts.

2. Remove and discard the main bearing cap bolts and stud bolt.
