Cylinder Head — 2016 workshop reference 466

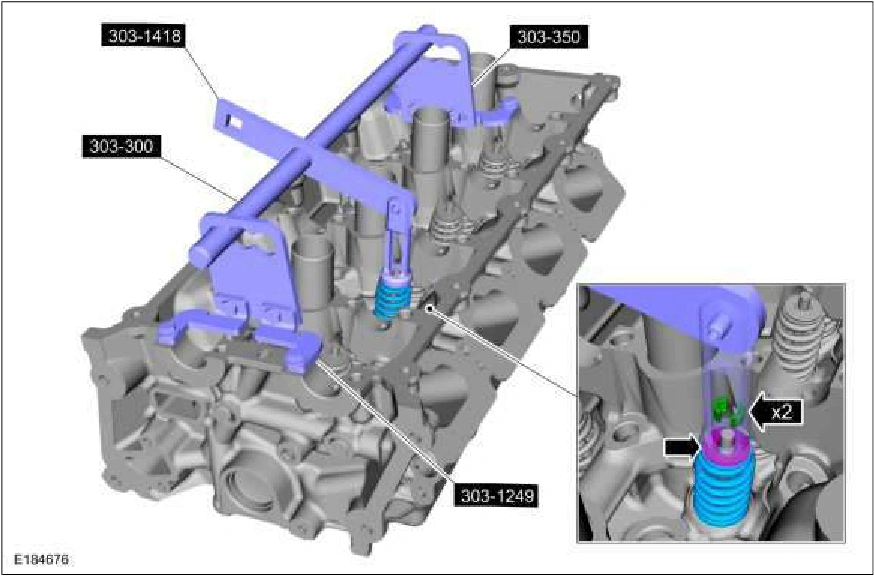

Cylinder Head — original illustration 1, reference 466Original colors & callouts · Select to enlarge

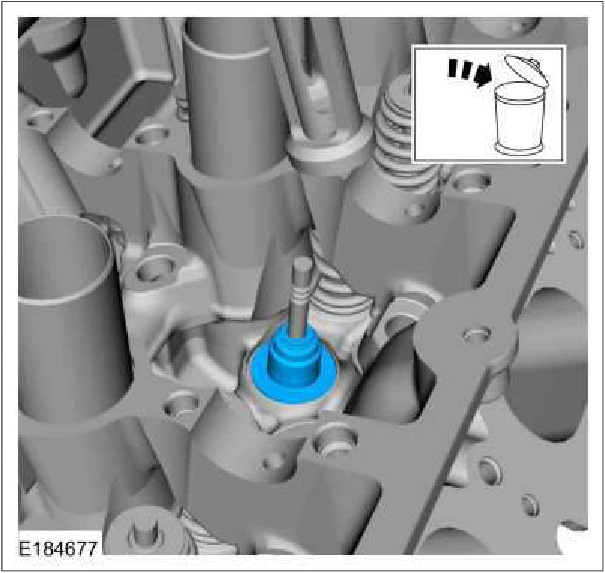

8. Remove and discard the valve stem seal.

Cylinder Head — original illustration 2, reference 466Original colors & callouts · Select to enlarge

9. Remove the valve from the cylinder head.
