Cylinder Head

303-01C Engine - 5.0L

2016 Mustang5.0LReference 468 / 6,619HTML edition
← Chapter contentsProcedure contents

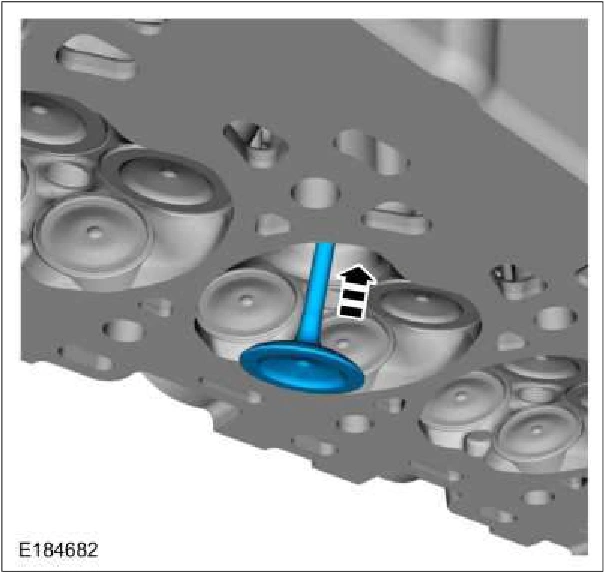

Cylinder Head — original illustration 1, reference 468Original colors & callouts · Select to enlarge

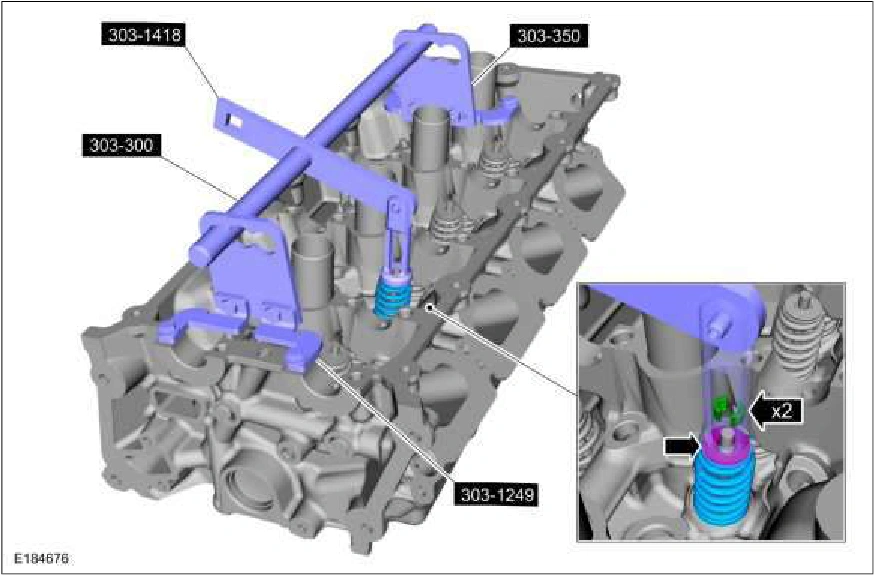

3. Using the special tools, install the spring, retainer and keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor. , 303-350 (T89P- 6565-A) Compressor, Valve Spring. , 303-1249 Valve Spring Compressor. , 303-1418 Compressor, Valve Spring.

Cylinder Head — original illustration 2, reference 468Original colors & callouts · Select to enlarge

4. Repeat the previous steps for each of the remaining valves.

5. Install the spark plugs. Torque : 133 lb.in (15 Nm)

Source reference 468
