2016 workshop · Engine

Cylinder Head

303-01C Engine - 5.0L

2016 Mustang5.0LReference 465 / 6,619HTML edition
← Chapter contentsProcedure contents
Cylinder Head — original illustration 1, reference 465Original colors & callouts · Select to enlarge

All cylinder heads

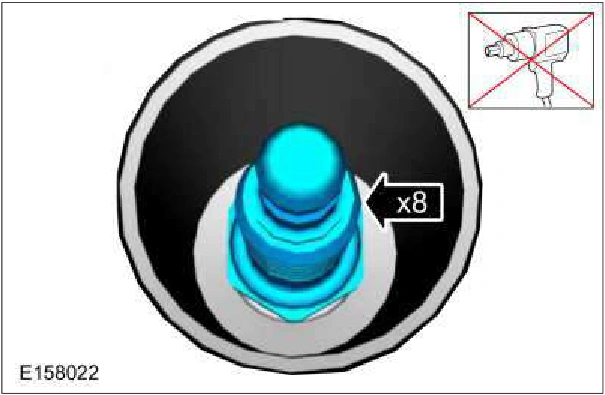

6. Remove the spark plugs.

Cylinder Head — original illustration 2, reference 465Original colors & callouts · Select to enlarge

7. Using the special tools, remove the keys, retainer and spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor. , 303-350 (T89P- 6565-A) Compressor, Valve Spring. , 303-1249 Valve Spring Compressor. , 303-1418 Compressor, Valve Spring.
