Cylinder Head — 2016 workshop reference 471

Cylinder Head — original illustration 1, reference 471Original colors & callouts · Select to enlarge

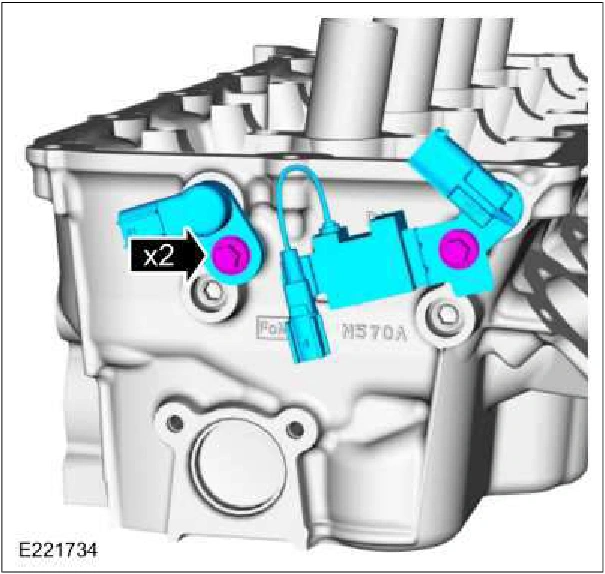

10. Install the CMP sensors, the radio interference capacitor and the bolts. Torque : 89 lb.in (10 Nm)

Cylinder Head — original illustration 2, reference 471Original colors & callouts · Select to enlarge

Source reference 471
