Piston

303-01C Engine - 5.0L

2016 Mustang5.0LReference 473 / 6,619HTML edition
← Chapter contentsProcedure contents

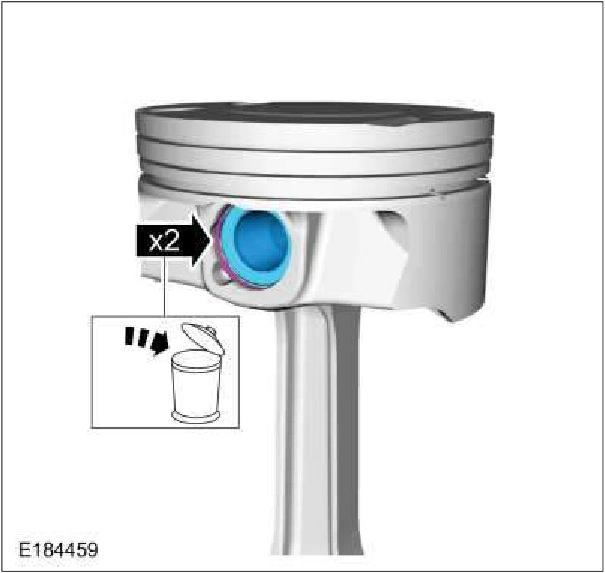

Piston — original illustration 1, reference 473Original colors & callouts · Select to enlarge

3. NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

Separate the piston from the connecting rod.

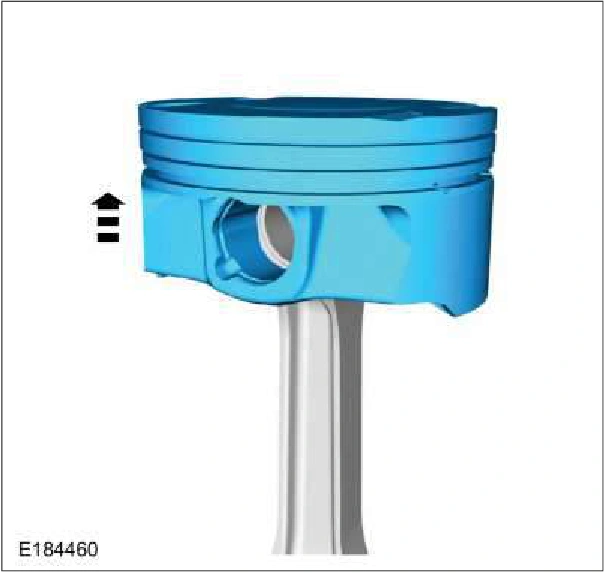

Piston — original illustration 2, reference 473Original colors & callouts · Select to enlarge

4. Clean and inspect the piston and connecting rod. Refer to: Piston Inspection (303-00 Engine System - General Information, General Procedures).

Source reference 473
