Piston — 2016 workshop reference 476

Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

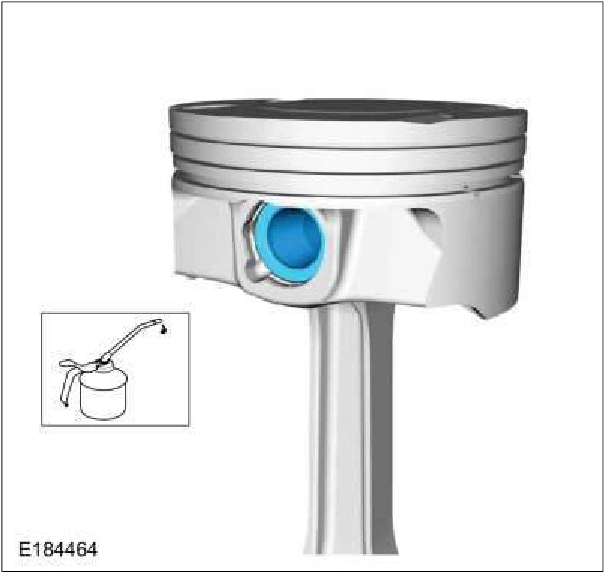

Piston — original illustration 1, reference 476Original colors & callouts · Select to enlarge

4. NOTE: The piston pin retainer gap orientation must be toward the top of the piston.

Install the piston pin retainers.

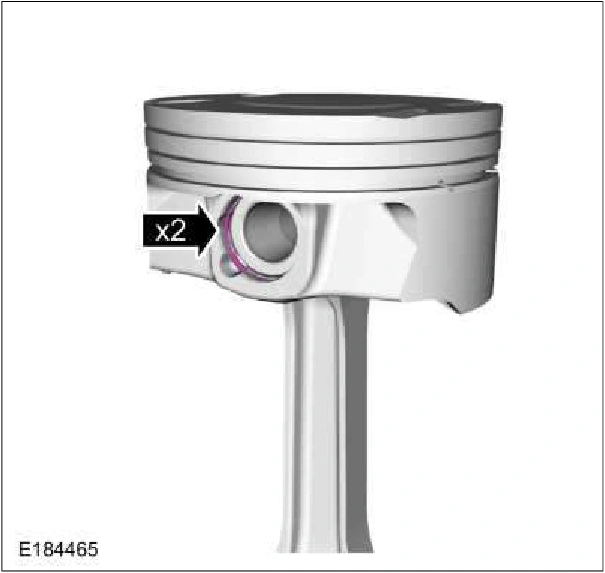

Piston — original illustration 2, reference 476Original colors & callouts · Select to enlarge

5. Lubricate and install the oil control rings.

1. Upper oil control ring.

2. Oil control expander ring.

3. Lower oil control ring. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Source reference 476
