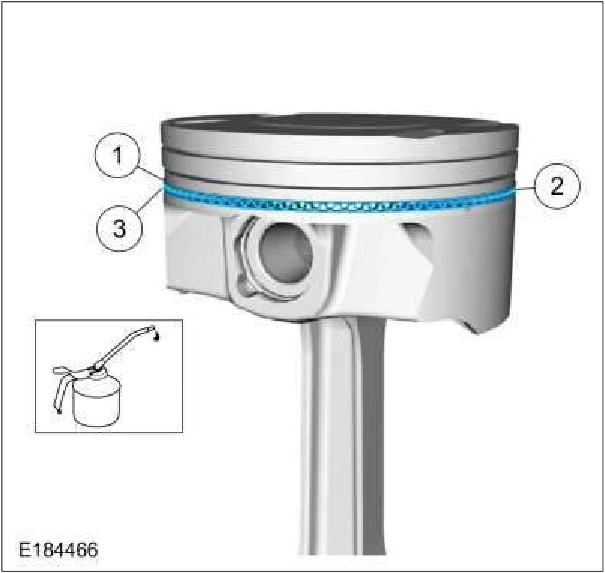

6. Install the lower compression ring.

1. The "O" mark on the ring pointing up toward the top of the piston.

2. Hook feature will point down toward the bottom of piston. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Piston — original illustration 2, reference 477Original colors & callouts · Select to enlarge

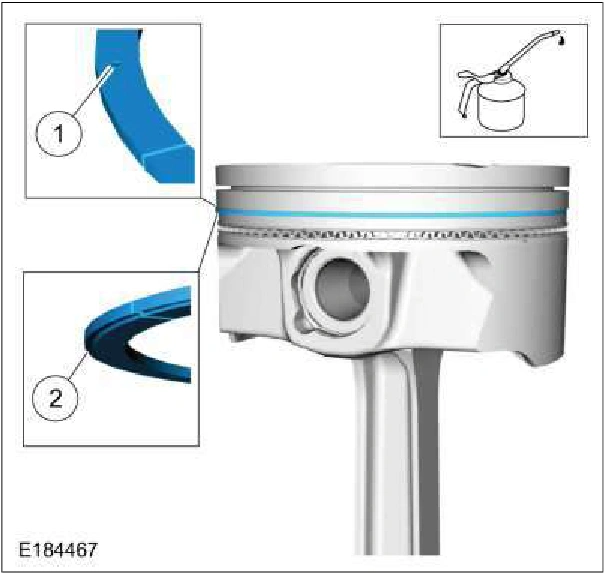

7. Install the upper compression ring.

1. The "O" mark on the ring pointing up toward the top of the piston. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
