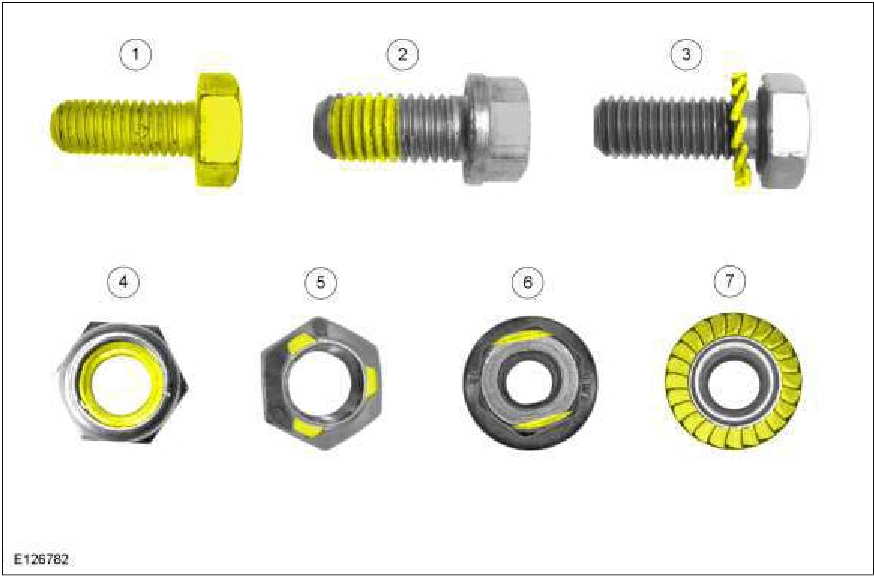

Item | Part Number | Description |
|---|---|---|
1 | — | Completely coated self-locking bolt |
2 | — | Partially coated self-locking bolt |
3 | — | Self-locking bolt with a locking washer |
4 | — | Self-locking nut with a plastic locking insert |
5 | — | Self-locking nut with thread deformation (3 indentations) |
6 | — | Self-locking nut with thread deformation (to oval shape) |
7 | — | Self-locking nut with integrated locking ring |
SEALS AND GASKETS
Replace seals and gaskets, unless specified differently in the procedure.
EXTERIOR TRIM PARTS
Replace exterior trim parts fastened with glue or adhesive tape, unless specified differently in the procedure.
Mechanical Procedures
Illustrations in this manual may be used instead of written step instructions. Color-coding (see color scheme illustration) is used to communicate the required step action or actions. Service action icons may be used to add information regarding the required action. For additional information, refer to: Symbols Glossary (100-00 General Information, Description and Operation).
Illustration Color-coding
