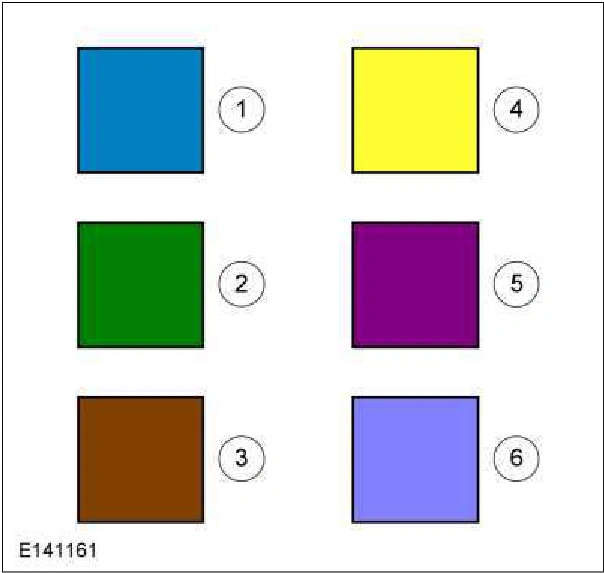

Item | Part Number | Description |
|---|---|---|
1 | — | Blue - Target or primary component to be removed/installed (or disassembled/assembled). |
2 | — | Green - Components that need to be removed prior to or installed after the target/primary. |
3 | — | Brown - Components that need to be removed prior to or installed after the target/primary. |
4 | — | Yellow - Components to be set aside for access, but not removed. Also highlighted areas to inspect or adjust. |
5 | — | Magenta - Electrical connectors and fasteners such as nuts, bolts, clamps, or clips to be: detached, attached, loosened, moved, removed or installed. |
6 | — | Pale Blue - Special tool(s), general equipment, or common tools used in an uncommon way. |
Other color coding
Alternating Blue and White
Chemical, adhesive or sealer apply areas
Red
Sectioned or cut-away areas
Grey
Background components shown for location information
ILLUSTRATION TASK SEQUENCE
Components that must be removed or installed in a specific sequence are identified with a numbered callout. Any associated step text is numbered accordingly.
Simple procedure example showing color-coding and task sequence.
