Reference Values 6-19
1.6L 4V EcoSport
1.6L 4V EcoSport

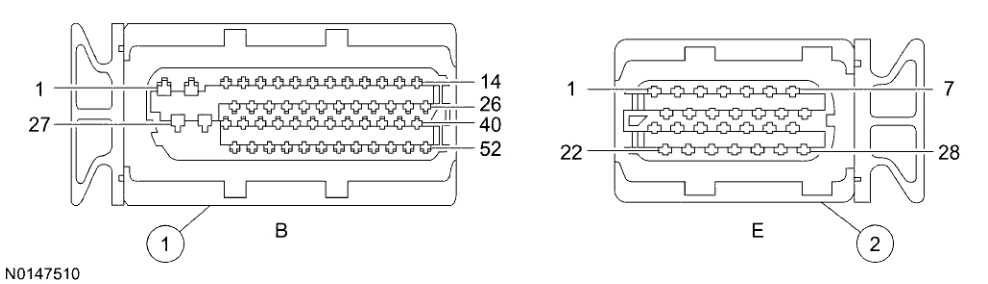

Typical Diagnostic Reference Values
Inputs Component/PID Measured/PID Values Units Only Measured/PID KOEO Hot Idle 48 KM/H (30 89 KM/H (55 MPH) MPH) AAT PID 23 (73.4) 13 (55.4) 14 (57.2) 14 (57.2) DEG C (DEG F) APP1 APP Sensor 0 0 0 0 % APP2 APP Sensor 8.06 8.23 8.23 8.23 % APP2 APP Sensor 1.96 1.96 1.96 1.96 VOLTS B+ PID 12.7 13-14 13-14 13-14 VOLTS BARO PID 14.35/156.11/ 14.35/156.11/ 14.35/156.11/ 14.35/156.11/ PSI/Hz/kPa 99.00 99.00 99.00 99.00 BPP BPP Switch OFF ON (C) OFF OFF ON/OFF ECT ECT Sensor 1.00/55 (131) 0.45/85 (185) 0.44/86 (186.8) 0.43/87 (188.6) VOLTS/DEG C (DEG F) FLI Fuel Level Sensor 70.19 57.25 66.66 67.84 % HTRCM11 HO2S11 Sensor 1.65 1.65 1.65 1.48 AMPS HTRCM12 HO2S12 Sensor 615 615 615 622 mA IAT IAT Sensor 1.27/62 (143.6) 1.79/49 (120.2) 3.42/16 (60.8) 4.04/2 (35.6) VOLTS/DEG C (DEG F) LOAD PID 0 (D) 24.70 35.68 62.35 % MAP MAP Sensor 4.02/98.93/ 1.25/30.95/4.49 2.52/61.98/ 2.32/51.98/ VOLTS/kPa/ 14.35/29.2 /9.2 8.99/17.8 7.54/15.4 PSI/inHg MISFIRE PID NO NO NO NO YES/NO MP_LRN PID YES YES YES YES YES/NO O2S11 HO2S11 Sensor (D) switching (A) switching (A) switching (A) VOLTS O2S12 HO2S12 Sensor (D) (B) (B) (B) VOLTS RPM CKP Sensor 0 755 1809 3334 RPM SYNC PID NO YES YES YES YES/NO VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h / MPH
Original table alignment retained · Scroll horizontally if needed
2016 Powertrain Control/Emissions Diagnosis, Gasoline Engines, 3/2015
Source reference 5373
