Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).
Fog Lamps - China Only

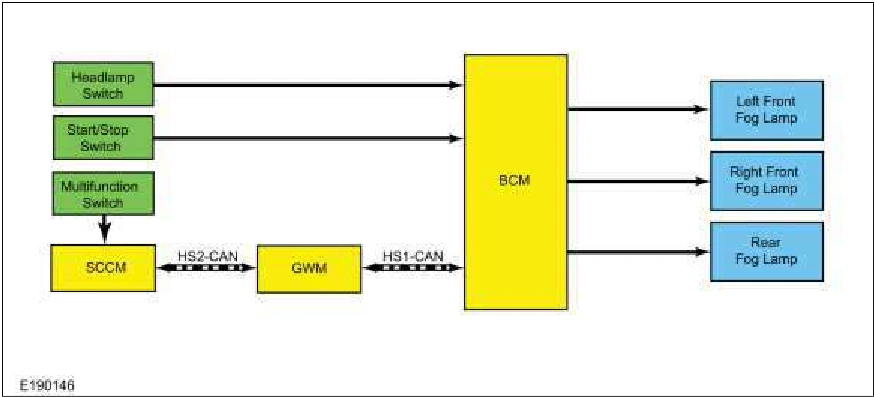

System Diagram
Network Message Chart
BCM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Turn signal switch status | GWM | Indicates the turn signal stalk position on the LH steering column multifunction switch (left/right lane change or turn signal on or off). The BCM deactivates the LH or RH fog lamp based on this input. |
GWM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Turn signal switch status | SCCM | Indicates the turn signal stalk position on the LH steering column multifunction switch (left/right lane change or turn signal on or off). |
Fog Lamps
The BCM monitors the headlamp switch position by sending voltage signals on multiple circuits to the headlamp switch. There is one circuit for each headlamp switch position. At any given time, one of the signal circuits is switched to ground to indicate the headlamp switch position.
When the BCM receives input from the headlamp switch indicating a request for the front fog lamps, the BCM provides voltage to the front fog lamps.
When the BCM receives input requesting a LH or RH turn signal, the BCM disables the corresponding front fog
