Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).
Reversing Lamps

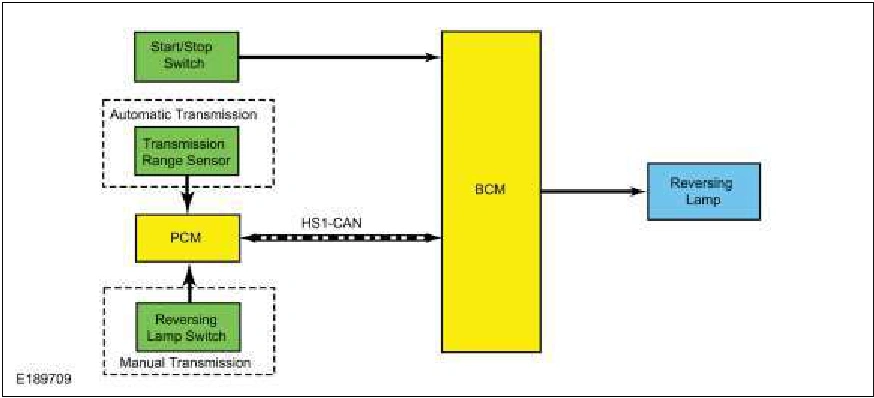

System Diagram
Network Message Chart
BCM Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Reverse gear state | PCM | Indicates the transmission selector is in reverse to the BCM. When the transmission selector is in REVERSE and the ignition is in RUN, the BCM provides voltage to the reversing lamps. |
Reversing Lamps
When the transmission is in REVERSE, the PCM sends a message over the HS-CAN1 to the BCM indicating the transmission is in REVERSE. The BCM provides voltage to the reversing lamps when it receives the message that the transmission is in REVERSE and the ignition is in RUN.
The BCM also provides an Field Effect Transistor (FET) protection of the reversing lamps output circuit. When an excessive current draw is detected, the BCM disables the affected reversing lamps circuit driver.
Refer to: Module Controlled Functions - System Operation and Component Description (419-10 Multifunction Electronic Modules, Description and Operation).
Component Description
Headlamp Assembly
The High Intensity Discharge (HID) headlamp assembly has an integrated solenoid activated shutter which
