2016 workshop · Lighting

Headlamp Adjustment

417-01 Exterior Lighting

2016 MustangReference 5,759 / 6,619HTML edition
← Chapter contentsProcedure contents

9. NOTE: The appearance of the VOR beam pattern may vary between vehicles.

There is a distinct cutoff in the right portion of the beam pattern.

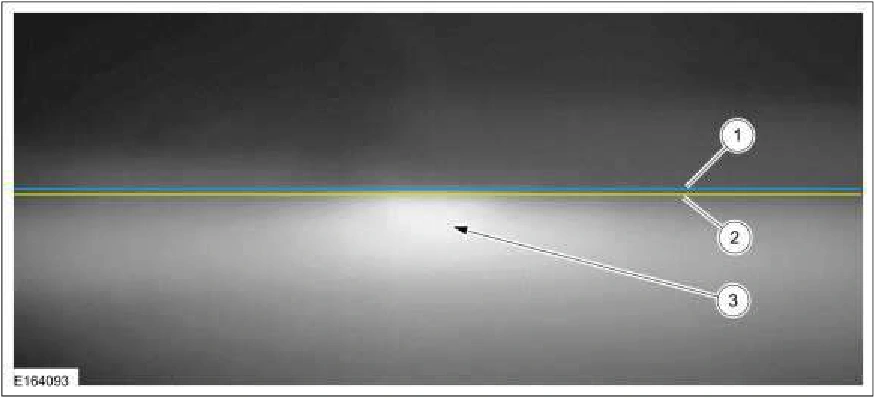

10. 1 - Horizontal reference line

2 - Cut off 3 - High intensity zone

Headlamp Adjustment — original illustration 1, reference 5759Original colors & callouts · Select to enlarge

11. NOTE: Align one headlamp while covering the other headlamp.

Align the headlamps to the horizontal reference line. Adjust the headlamp as necessary using the headlamp adjusting screw.

12. Repeat the previous step for the remaining headlamp.

VOL-type headlamps

NOTE: Procedure applies to both left and right headlamps with VOL molded on lens.

13. NOTE: The appearance of the VOL beam pattern may vary between vehicles.

For VOL-type headlamps, there is a distinct cutoff in the left portion of the beam pattern. The edge of this cutoff should be positioned 5 CM (2 in) below the horizontal reference line.

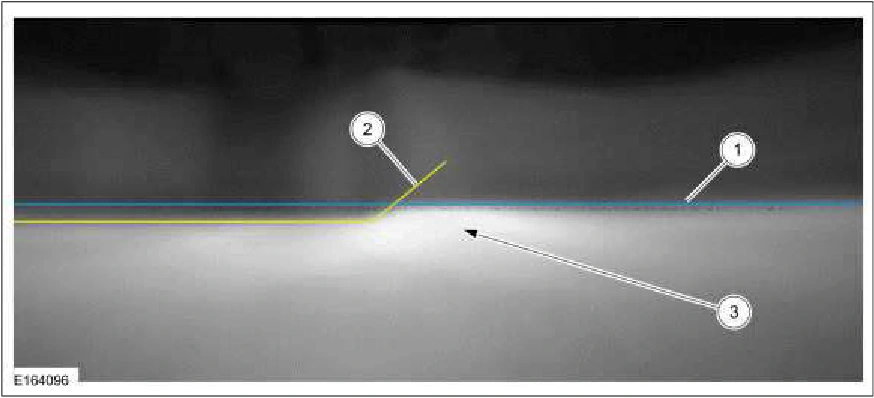

14. 1 - Horizontal reference line

2 - Cut off 3 - High intensity zone

Headlamp Adjustment — original illustration 2, reference 5759Original colors & callouts · Select to enlarge
