Ballast

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

1. Remove the headlamp assembly. Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

2. Remove the screws and position the ballast for access to the electrical connector.

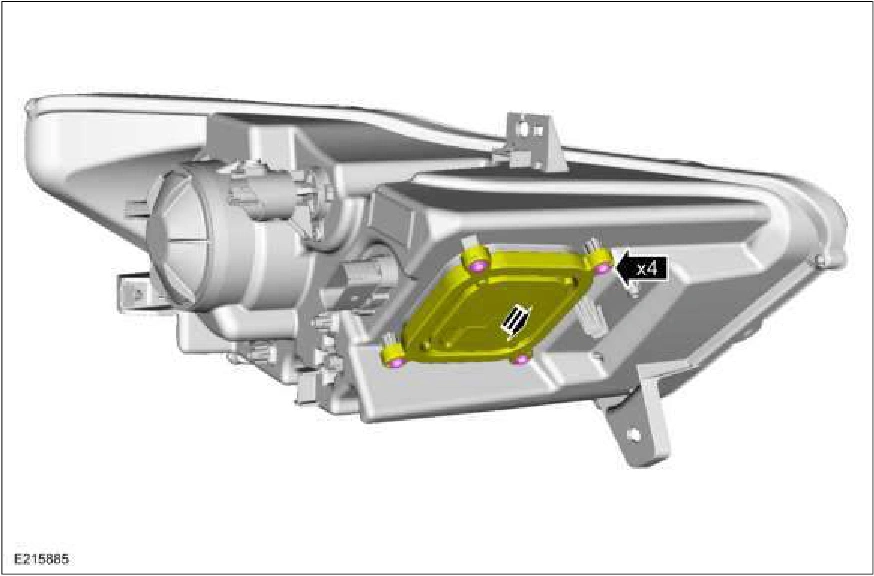

Ballast — original illustration 1, reference 5761Original colors & callouts · Select to enlarge

3. Disconnect the electrical connector and remove the ballast.

Source reference 5761
