Front Fog Lamp — 2016 workshop reference 5764

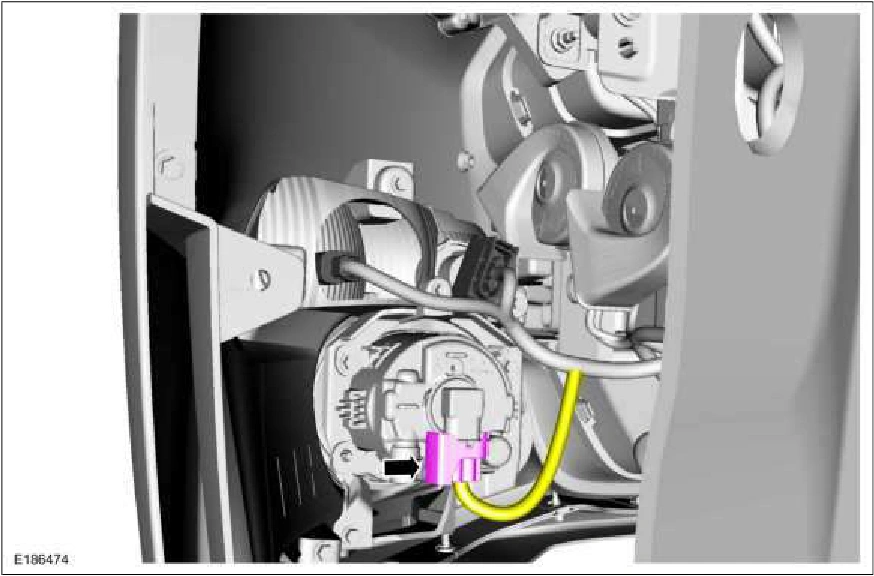

Front Fog Lamp — original illustration 1, reference 5764Original colors & callouts · Select to enlarge

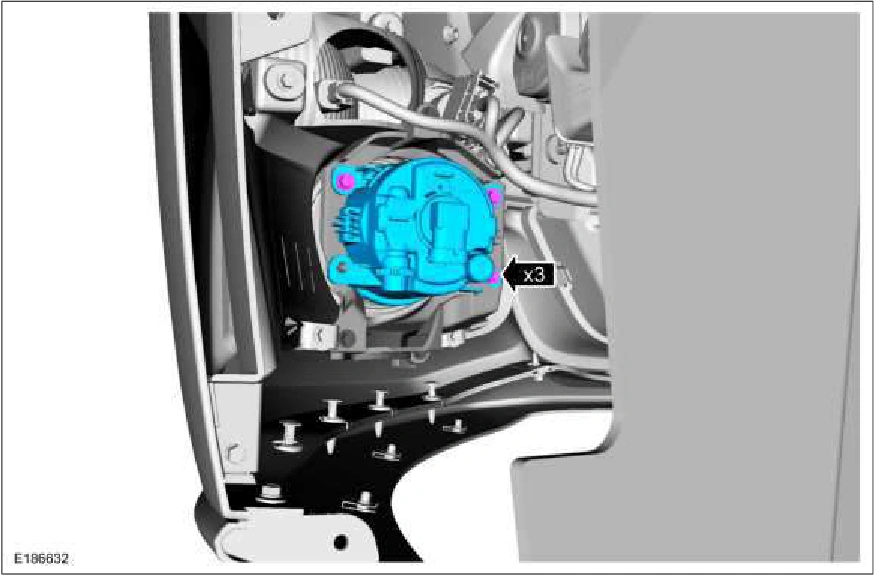

4. Remove the screws and the fog lamp assembly. Torque : 15 lb.in (1.7 Nm)

Front Fog Lamp — original illustration 2, reference 5764Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Adjust the fog lamps. Refer to: Front Fog Lamp Adjustment (417-01 Exterior Lighting, General Procedures).
