417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Front Marker Lamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicles with fog lamp shown, all others are similar.

NOTE: LH shown, RH similar.

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Remove the front bumper grille cover.

1. Remove the screws. Torque : 15 lb.in (1.7 Nm)

2. Release the tabs.

3. Remove the front bumper grille cover.

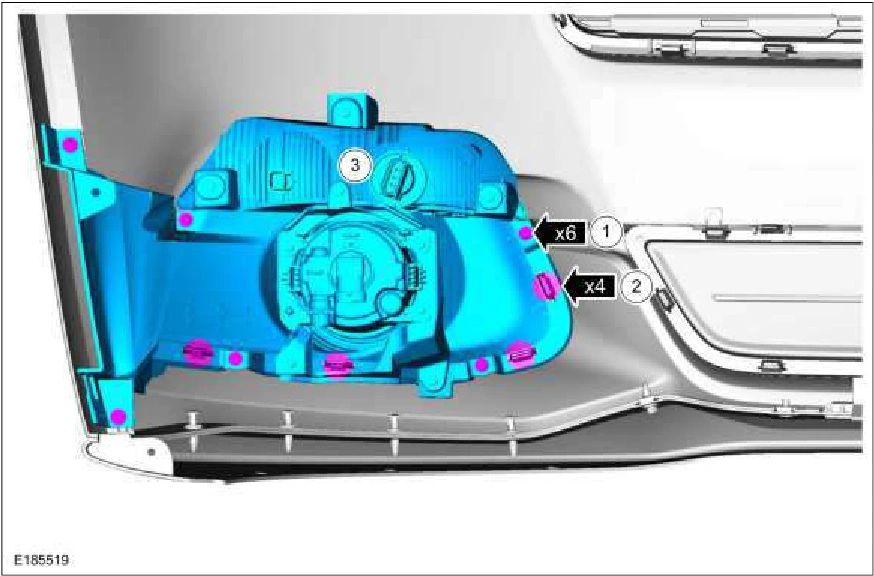

Front Marker Lamp — original illustration 1, reference 5767Original colors & callouts · Select to enlarge

3. Remove screws and the front marker lamp. Torque : 15 lb.in (1.7 Nm)
