Front Fog Lamp Bulb

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Removal

NOTE: This procedure is for halogen fog lamps bulbs only, LED fog lamp bulbs are serviced as an assembly.

NOTE: Removal steps in this procedure may contain installation details.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

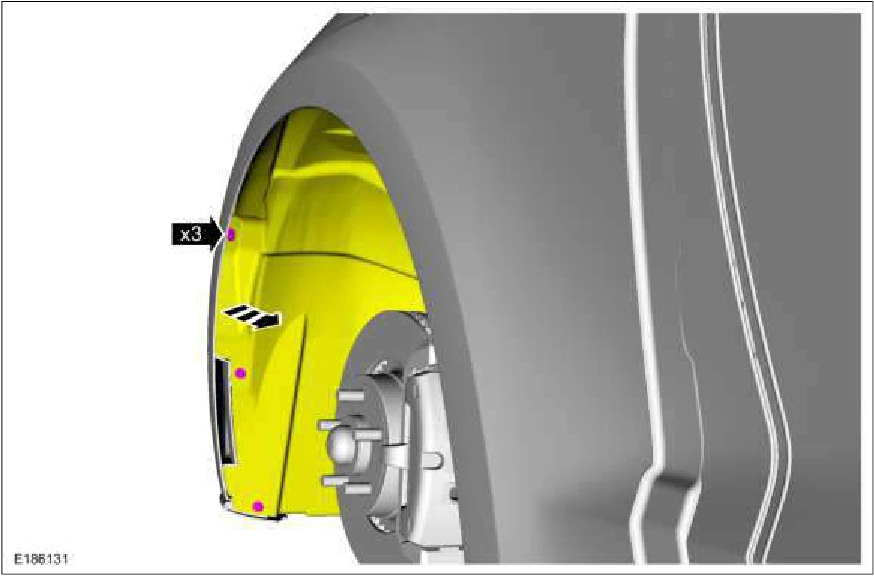

3. Remove the push pins and position the inner fender liner aside.

Front Fog Lamp Bulb — original illustration 1, reference 5765Original colors & callouts · Select to enlarge

4. Disconnect the front fog lamp electrical connector.

Source reference 5765
